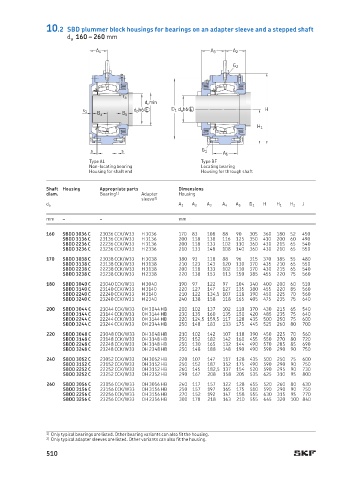

10.2 SBD plummer block housings for bearings on an adapter sleeve and a stepped shaft
d a 160 – 260 mm

A 4 A 3 A 2
G 2

r a
d c min
d b h6 E D 1 d a h6 E H
s 1
B a B b
H 1

s s G 1
A 5
Type AL Type BF
Non-locating bearing Locating bearing
Housing for shaft end Housing for through shaft
Shaft Housing Appropriate parts Dimensions
diam. Bearing 1) Adapter Housing
sleeve 2)
H J
d a A 1 A 2 A 3 A 4 A 5 D 1 H 1 H 2
mm – – mm
160 SBDD 3036 C 23036 CCK/W33 H 3036 170 83 108 88 90 305 360 180 52 450
SBDD 3136 C 23136 CCK/W33 H 3136 200 118 138 116 125 350 410 200 60 490
SBDD 2236 C 22236 CCK/W33 H 3136 200 118 133 102 110 360 430 215 65 540
SBDD 3236 C 23236 CCK/W33 H 2336 210 133 148 108 140 360 430 210 65 550
170 SBDD 3038 C 23038 CCK/W33 H 3038 180 93 118 88 96 315 370 185 55 480
SBDD 3138 C 23138 CCK/W33 H 3138 210 123 143 120 130 370 435 210 65 550
SBDD 2238 C 22238 CCK/W33 H 3138 200 118 133 102 110 370 430 215 65 540
SBDD 3238 C 23238 CCK/W33 H 2338 220 138 153 113 150 385 455 220 75 560
180 SBDD 3040 C 23040 CCK/W33 H 3040 190 97 122 97 104 340 400 200 60 510
SBDD 3140 C 23140 CCK/W33 H 3140 220 127 147 127 135 380 455 220 85 560
SBDD 2240 C 22240 CCK/W33 H 3140 210 122 134,5 107 118 390 450 225 70 560
SBDD 3240 C 23240 CCK/W33 H 2340 240 138 158 118 165 405 475 235 75 640
200 SBDD 3044 C 23044 CCK/W33 OH 3044 HB 200 102 137 102 110 370 430 215 65 540
SBDD 3144 C 23144 CCK/W33 OH 3144 HB 230 135 160 135 150 420 485 235 75 640
SBDD 2244 C 22244 CCK/W33 OH 3144 HB 220 124,5 159,5 117 128 435 500 250 75 600
SBDD 3244 C 23244 CCK/W33 OH 2344 HB 250 148 183 133 175 445 525 260 80 700
220 SBDD 3048 C 23048 CCK/W33 OH 3048 HB 210 102 142 107 118 390 450 225 70 560
SBDD 3148 C 23148 CCK/W33 OH 3148 HB 250 152 182 142 160 455 550 270 80 720
SBDD 2248 C 22248 CCK/W33 OH 3148 HB 250 130 165 132 144 490 570 285 85 690
SBDD 3248 C 23248 CCK/W33 OH 2348 HB 250 148 188 148 190 490 590 290 90 750
240 SBDD 3052 C 23052 CCK/W33 OH 3052 HB 220 107 147 117 128 435 500 250 75 600
SBDD 3152 C 23152 CCK/W33 OH 3152 HB 250 152 187 152 175 490 590 290 90 750
SBDD 2252 C 22252 CCK/W33 OH 3152 HB 260 145 182,5 137 154 520 590 295 90 730
SBDD 3252 C 23252 CCK/W33 OH 2352 HB 290 167 208 158 205 535 625 310 95 800
260 SBDD 3056 C 23056 CCK/W33 OH 3056 HB 240 117 157 122 128 455 520 260 80 630
SBDD 3156 C 23156 CCK/W33 OH 3156 HB 250 157 197 165 175 510 590 290 90 750
SBDD 2256 C 22256 CCK/W33 OH 3156 HB 270 152 192 147 158 555 630 315 95 770
SBDD 3256 C 23256 CCK/W33 OH 2356 HB 300 178 218 163 210 555 645 320 100 840

1) Only typical bearings are listed. Other bearing variants can also fit the housing.
2) Only typical adapter sleeves are listed. Other variants can also fit the housing.
