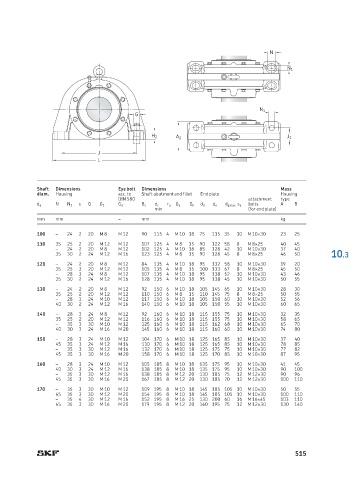

Page 519 - SKF-bearing-housings

N

N 1

N 1
G

H 2 A 1 J 1
J
L

Shaft Dimensions Eye bolt Dimensions Mass
diam. Housing acc. to Shaft abutment and fillet End plate Housing
DIN 580 attachment type
d a N N 1 s G G 1 G 2 B c d c r a G a G h d d d e d gmax s a bolts A B
min (for end plate)
mm mm – mm kg
100 – 24 2 20 M 8 M 12 90 115 4 M 10 18 75 115 35 10 M 10¥30 23 25
110 35 25 2 20 M 12 M 12 107 125 4 M 8 15 90 122 58 8 M 8¥25 40 45
– 24 2 20 M 8 M 12 102 125 4 M 10 18 85 128 42 10 M 10¥30 37 40
35 30 2 24 M 12 M 16 123 125 4 M 8 15 90 128 45 8 M 8¥25 46 50 10.3
120 – 24 2 20 M 8 M 12 84 135 4 M 10 18 95 132 58 10 M 10¥30 19 20
35 25 3 20 M 12 M 12 105 135 4 M 8 15 100 133 67 8 M 8¥25 45 50
– 28 3 24 M 8 M 12 107 135 4 M 10 18 95 138 52 10 M 10¥30 43 46
35 30 2 24 M 12 M 16 128 135 4 M 10 18 95 138 45 10 M 10¥30 50 55
130 – 24 2 20 M 8 M 12 92 150 6 M 10 18 105 145 65 10 M 10¥30 28 30
35 25 2 20 M 12 M 12 110 150 6 M 8 15 110 145 75 8 M 8¥25 50 55
– 28 3 24 M 10 M 12 117 150 6 M 10 18 105 150 60 10 M 10¥30 52 56
40 30 2 24 M 12 M 16 140 150 6 M 10 18 105 150 55 10 M 10¥30 60 65
140 – 28 3 24 M 8 M 12 92 160 6 M 10 18 115 155 75 10 M 10¥30 32 35
35 25 2 20 M 12 M 12 116 160 6 M 10 18 115 155 75 10 M 10¥30 58 65
– 35 3 30 M 10 M 12 125 160 6 M 10 18 115 162 68 10 M 10¥30 65 70
40 30 3 24 M 16 M 20 145 160 6 M 10 18 115 160 60 10 M 10¥30 74 80
150 – 28 3 24 M 10 M 12 104 170 6 M 10 18 125 165 85 10 M 10¥30 37 40
45 35 3 24 M 12 M 16 130 170 6 M 10 18 125 165 85 10 M 10¥30 78 85
– 35 3 30 M 12 M 16 132 170 6 M 10 18 125 175 75 10 M 10¥30 77 82
45 35 3 30 M 16 M 20 158 170 6 M 10 18 125 170 85 10 M 10¥30 87 95
160 – 28 3 24 M 10 M 12 105 185 8 M 10 18 135 175 95 10 M 10¥30 41 45
40 30 3 24 M 12 M 16 138 185 8 M 10 18 135 175 95 10 M 10¥30 90 100
– 35 3 30 M 12 M 16 138 185 8 M 12 20 130 185 75 12 M 12¥30 90 96
45 35 3 30 M 16 M 20 167 185 8 M 12 20 130 185 70 12 M 12¥30 100 110
170 – 35 3 30 M 10 M 12 109 195 8 M 10 18 145 185 105 10 M 10¥30 50 55
45 35 3 30 M 12 M 20 154 195 8 M 10 18 145 185 105 10 M 10¥30 100 110
– 35 4 30 M 12 M 16 152 195 8 M 16 25 130 200 60 16 M 16¥45 103 110
45 35 3 30 M 16 M 20 179 195 8 M 12 20 140 195 75 12 M 12¥30 130 140
