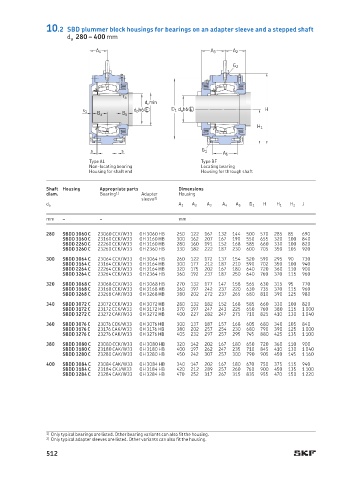

10.2 SBD plummer block housings for bearings on an adapter sleeve and a stepped shaft
d a 280 – 400 mm

A 4 A 3 A 2
G 2

r a
d c min
d b h6 E D 1 d a h6 E H
s 1
B a B b
H 1

s s G 1
A 5
Type AL Type BF
Non-locating bearing Locating bearing
Housing for shaft end Housing for through shaft
Shaft Housing Appropriate parts Dimensions
diam. Bearing 1) Adapter Housing
sleeve 2)
H J
d a A 1 A 2 A 3 A 4 A 5 D 1 H 1 H 2
mm – – mm
280 SBDD 3060 C 23060 CCK/W33 OH 3 060 HB 250 122 167 132 144 500 570 285 85 690
SBDD 3160 C 23160 CCK/W33 OH 3160 HB 300 162 207 167 190 550 655 320 100 840
SBDD 2260 C 22260 CCK/W33 OH 3160 HB 280 160 191 152 168 585 660 330 100 820
SBDD 3260 C 23260 CCK/W33 OH 2360 HB 330 182 222 187 230 600 705 350 105 920
300 SBDD 3064 C 23064 CCK/W33 OH 3064 HB 260 122 172 137 154 520 590 295 90 730
SBDD 3164 C 23164 CCK/W33 OH 3164 HB 300 177 212 187 210 590 702 350 100 940
SBDD 2264 C 22264 CCK/W33 OH 3164 HB 320 175 202 167 180 640 720 360 110 900
SBDD 3264 C 23264 CCK/W33 OH 2364 HB 360 192 237 187 250 640 760 370 115 960
320 SBDD 3068 C 23068 CCK/W33 OH 3068 HB 270 132 177 147 158 565 630 315 95 770
SBDD 3168 C 23168 CCK/W33 OH 3168 HB 360 197 242 237 220 630 735 370 115 960
SBDD 3268 C 23268 CAK/W33 OH 3268 HB 380 202 272 237 265 680 810 390 125 980
340 SBDD 3072 C 23072 CCK/W33 OH 3072 HB 280 132 182 152 168 585 660 330 100 820
SBDD 3172 C 23172 CCK/W33 OH 3172 HB 370 197 247 243 225 650 760 380 115 1 000
SBDD 3272 C 23272 CAK/W33 OH 3272 HB 400 227 282 247 275 710 825 410 130 1 040
360 SBDD 3076 C 23076 CCK/W33 OH 3076 HB 300 137 187 157 168 605 680 340 105 840
SBDD 3176 C 23176 CAK/W33 OH 3176 HB 380 202 257 254 230 680 790 390 125 1 000
SBDD 3276 C 23276 CAK/W33 OH 3276 HB 405 232 297 257 295 745 880 425 135 1 100
380 SBDD 3080 C 23080 CCK/W33 OH 3080 HB 320 142 202 167 180 650 720 360 110 900
SBDD 3180 C 23180 CAK/W33 OH 3180 HB 400 197 262 247 235 710 845 410 130 1 040
SBDD 3280 C 23280 CAK/W33 OH 3280 HB 450 242 307 257 300 790 905 450 145 1 160
400 SBDD 3084 C 23084 CAK/W33 OH 3084 HB 340 147 202 167 180 670 750 375 115 940
SBDD 3184 C 23184 CKJ/W33 OH 3184 HB 420 212 289 257 260 760 900 450 135 1 100
SBDD 3284 C 23284 CAK/W33 OH 3284 HB 470 252 317 267 315 835 955 470 150 1 220

1) Only typical bearings are listed. Other bearing variants can also fit the housing.
2) Only typical adapter sleeves are listed. Other variants can also fit the housing.
