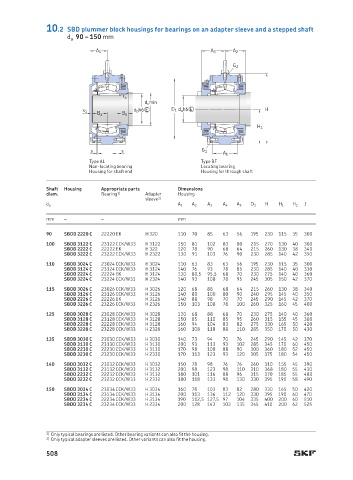

10.2 SBD plummer block housings for bearings on an adapter sleeve and a stepped shaft
d a 90 – 150 mm

A 4 A 3 A 2
G 2

r a
d c min
d b h6 E D 1 d a h6 E H
s 1
B a B b
H 1

s s G 1
A 5
Type AL Type BF
Non-locating bearing Locating bearing
Housing for shaft end Housing for through shaft
Shaft Housing Appropriate parts Dimensions
diam. Bearing 1) Adapter Housing
sleeve 2)
H J
d a A 1 A 2 A 3 A 4 A 5 D 1 H 1 H 2
mm – – mm
90 SBDD 2220 C 22220 EK H 320 110 70 85 63 56 195 230 115 35 300
100 SBDD 3122 C 23122 CCK/W33 H 3122 150 81 102 83 80 215 270 130 40 300
SBDD 2222 C 22222 EK H 322 120 78 90 68 64 215 260 130 38 340
SBDD 3222 C 23222 CCK/W33 H 2322 130 91 103 76 90 230 285 140 42 350
110 SBDD 3024 C 23024 CCK/W33 H 3024 110 63 83 63 56 195 230 115 35 300
SBDD 3124 C 23124 CCK/W33 H 3124 140 76 93 78 85 230 285 140 40 330
SBDD 2224 C 22224 EK H 3124 130 80,5 95,5 68 70 230 275 140 40 360
SBDD 3224 C 23224 CCK/W33 H 2324 140 93 108 78 95 245 305 150 42 370
115 SBDD 3026 C 23026 CCK/W33 H 3026 120 68 88 68 64 215 260 130 38 340
SBDD 3126 C 23126 CCK/W33 H 3126 140 80 100 80 90 240 295 145 40 350
SBDD 2226 C 22226 EK H 3126 140 88 98 70 70 245 290 145 42 370
SBDD 3226 C 23226 CCK/W33 H 2326 150 103 108 78 100 260 325 160 45 400
125 SBDD 3028 C 23028 CCK/W33 H 3028 130 68 88 68 70 230 275 140 40 360
SBDD 3128 C 23128 CCK/W33 H 3128 150 85 110 85 95 260 315 155 45 380
SBDD 2228 C 22228 CCK/W33 H 3128 160 94 104 83 82 275 330 165 50 420
SBDD 3228 C 23228 CCK/W33 H 2328 160 108 118 88 110 285 350 170 50 430
135 SBDD 3030 C 23030 CCK/W33 H 3030 140 73 94 70 76 245 290 145 42 370
SBDD 3130 C 23130 CCK/W33 H 3130 200 93 113 93 102 285 345 170 60 450
SBDD 2230 C 22230 CCK/W33 H 3130 170 98 108 88 90 300 360 180 52 450
SBDD 3230 C 23230 CCK/W33 H 2330 170 113 123 93 120 305 375 180 54 450
140 SBDD 3032 C 23032 CCK/W33 H 3032 150 78 98 76 76 260 310 155 45 390
SBDD 3132 C 23132 CCK/W33 H 3132 200 98 123 98 110 310 368 180 55 430
SBDD 2232 C 22232 CCK/W33 H 3132 180 101 116 88 96 315 370 185 55 480
SBDD 3232 C 23232 CCK/W33 H 2332 180 118 133 98 130 330 395 190 58 490
150 SBDD 3034 C 23034 CCK/W33 H 3034 160 78 103 83 82 280 330 165 50 420
SBDD 3134 C 23134 CCK/W33 H 3134 200 113 136 112 120 330 395 190 60 470
SBDD 2234 C 22234 CCK/W33 H 3134 190 112,5 127,5 97 104 335 400 200 60 510
SBDD 3234 C 23234 CCK/W33 H 2334 200 128 143 103 135 345 410 200 62 525

1) Only typical bearings are listed. Other bearing variants can also fit the housing.
2) Only typical adapter sleeves are listed. Other variants can also fit the housing.
