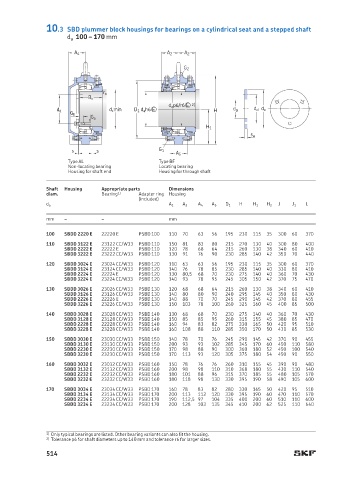

10.3 SBD plummer block housings for bearings on a cylindrical seat and a stepped shaft
d a 100 – 170 mm

A 4 A 2 A 2

G 2

r a
B c
d a p6/r6 E 2)
d c min D 1 d a h6 E
d d H d g d d d e
G h
G a
H 1
s a
s s G 1
A 5
Type AL Type BF
Non-locating bearing Locating bearing
Housing for shaft end Housing for through shaft
Shaft Housing Appropriate parts Dimensions
diam. Bearing 1) Adapter ring Housing
(included)
H J L
d a A 1 A 2 A 4 A 5 D 1 H 1 H 2 J 1
mm – – mm
100 SBDD 2220 E 22220 E PSBD 100 110 70 63 56 195 230 115 35 300 60 370
110 SBDD 3122 E 23122 CC/W33 PSBD 110 150 81 83 80 215 270 130 40 300 80 400
SBDD 2222 E 22222 E PSBD 110 120 78 68 64 215 260 130 38 340 60 410
SBDD 3222 E 23222 CC/W33 PSBD 110 130 91 76 90 230 285 140 42 350 70 440
120 SBDD 3024 E 23024 CC/W33 PSBD 120 110 63 63 56 195 230 115 35 300 60 370
SBDD 3124 E 23124 CC/W33 PSBD 120 140 76 78 85 230 285 140 40 330 80 410
SBDD 2224 E 22224 E PSBD 120 130 80,5 68 70 230 275 140 40 360 70 430
SBDD 3224 E 23224 CC/W33 PSBD 120 140 93 78 95 245 305 150 42 370 75 470
130 SBDD 3026 E 23026 CC/W33 PSBD 130 120 68 68 64 215 260 130 38 340 60 410
SBDD 3126 E 23126 CC/W33 PSBD 130 140 80 80 90 240 295 145 40 350 80 430
SBDD 2226 E 22226 E PSBD 130 140 88 70 70 245 290 145 42 370 80 455
SBDD 3226 E 23226 CC/W33 PSBD 130 150 103 78 100 260 325 160 45 400 85 500

140 SBDD 3028 E 23028 CC/W33 PSBD 140 130 68 68 70 230 275 140 40 360 70 430
SBDD 3128 E 23128 CC/W33 PSBD 140 150 85 85 95 260 315 155 45 380 85 470
SBDD 2228 E 22228 CC/W33 PSBD 140 160 94 83 82 275 330 165 50 420 95 510
SBDD 3228 E 23228 CC/W33 PSBD 140 160 108 88 110 285 350 170 50 430 85 530

150 SBDD 3030 E 23030 CC/W33 PSBD 150 140 78 70 76 245 290 145 42 370 90 455
SBDD 3130 E 23130 CC/W33 PSBD 150 200 93 93 102 285 345 170 60 450 110 580
SBDD 2230 E 22230 CC/W33 PSBD 150 170 98 88 90 300 360 180 52 450 100 540
SBDD 3230 E 23230 CC/W33 PSBD 150 170 113 93 120 305 375 180 54 450 90 550
160 SBDD 3032 E 23032 CC/W33 PSBD 160 150 78 76 76 260 310 155 45 390 90 480
SBDD 3132 E 23132 CC/W33 PSBD 160 200 98 98 110 310 368 180 55 430 110 540
SBDD 2232 E 22232 CC/W33 PSBD 160 180 101 88 96 315 370 185 55 480 105 570
SBDD 3232 E 23232 CC/W33 PSBD 160 180 118 98 130 330 395 190 58 490 105 600
170 SBDD 3034 E 23034 CC/W33 PSBD 170 160 78 83 82 280 330 165 50 420 95 510
SBDD 3134 E 23134 CC/W33 PSBD 170 200 113 112 120 330 395 190 60 470 110 570
SBDD 2234 E 22234 CC/W33 PSBD 170 190 112,5 97 104 335 400 200 60 510 110 600
SBDD 3234 E 23234 CC/W33 PSBD 170 200 128 103 135 345 410 200 62 525 110 640

1) Only typical bearings are listed. Other bearing variants can also fit the housing.
2) Tolerance p6 for shaft diameters up to 140 mm and tolerance r6 for larger sizes.
