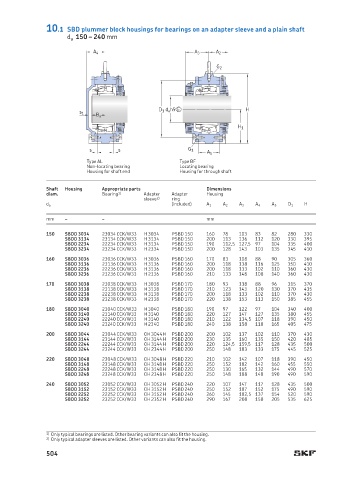

10.1 SBD plummer block housings for bearings on an adapter sleeve and a plain shaft
d a 150 – 240 mm

A 4 A 3 A 2

G 2

D 1 d a h9 E H
s 1
B a
H 1

s s G 1
A 5
Type AL Type BF
Non-locating bearing Locating bearing
Housing for shaft end Housing for through shaft
Shaft Housing Appropriate parts Dimensions
diam. Bearing 1) Adapter Adapter Housing
sleeve 2) ring
(included) H
d a A 1 A 2 A 3 A 4 A 5 D 1
mm – – mm
150 SBDD 3034 23034 CCK/W33 H 3034 PSBD 150 160 78 103 83 82 280 330
SBDD 3134 23134 CCK/W33 H 3134 PSBD 150 200 113 136 112 120 330 395
SBDD 2234 22234 CCK/W33 H 3134 PSBD 150 190 112,5 127,5 97 104 335 400
SBDD 3234 23234 CCK/W33 H 2334 PSBD 150 200 128 143 103 135 345 410
160 SBDD 3036 23036 CCK/W33 H 3036 PSBD 160 170 83 108 88 90 305 360
SBDD 3136 23136 CCK/W33 H 3136 PSBD 160 200 118 138 116 125 350 410
SBDD 2236 22236 CCK/W33 H 3136 PSBD 160 200 118 133 102 110 360 430
SBDD 3236 23236 CCK/W33 H 2336 PSBD 160 210 133 148 108 140 360 430
170 SBDD 3038 23038 CCK/W33 H 3038 PSBD 170 180 93 118 88 96 315 370
SBDD 3138 23138 CCK/W33 H 3138 PSBD 170 210 123 143 120 130 370 435
SBDD 2238 22238 CCK/W33 H 3138 PSBD 170 200 118 133 102 110 370 430
SBDD 3238 23238 CCK/W33 H 2338 PSBD 170 220 138 153 113 150 385 455
180 SBDD 3040 23040 CCK/W33 H 3040 PSBD 180 190 97 122 97 104 340 400
SBDD 3140 23140 CCK/W33 H 3140 PSBD 180 220 127 147 127 135 380 455
SBDD 2240 22240 CCK/W33 H 3140 PSBD 180 210 122 134,5 107 118 390 450
SBDD 3240 23240 CCK/W33 H 2340 PSBD 180 240 138 158 118 165 405 475
200 SBDD 3044 23044 CCK/W33 OH 3044 H PSBD 200 200 102 137 102 110 370 430
SBDD 3144 23144 CCK/W33 OH 3144 H PSBD 200 230 135 160 135 150 420 485
SBDD 2244 22244 CCK/W33 OH 3144 H PSBD 200 220 124,5 159,5 117 128 435 500
SBDD 3244 23244 CCK/W33 OH 2344 H PSBD 200 250 148 183 133 175 445 525
220 SBDD 3048 23048 CCK/W33 OH 3048 H PSBD 220 210 102 142 107 118 390 450
SBDD 3148 23148 CCK/W33 OH 3148 H PSBD 220 250 152 182 142 160 455 550
SBDD 2248 22248 CCK/W33 OH 3148 H PSBD 220 250 130 165 132 144 490 570
SBDD 3248 23248 CCK/W33 OH 2348 H PSBD 220 250 148 188 148 190 490 590
240 SBDD 3052 23052 CCK/W33 OH 3052 H PSBD 240 220 107 147 117 128 435 500
SBDD 3152 23152 CCK/W33 OH 3152 H PSBD 240 250 152 187 152 175 490 590
SBDD 2252 22252 CCK/W33 OH 3152 H PSBD 240 260 145 182,5 137 154 520 590
SBDD 3252 23252 CCK/W33 OH 2352 H PSBD 240 290 167 208 158 205 535 625

1) Only typical bearings are listed. Other bearing variants can also fit the housing.
2) Only typical adapter sleeves are listed. Other variants can also fit the housing.
