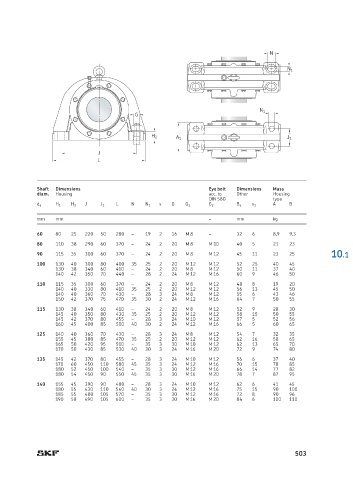

Page 507 - SKF-bearing-housings

N

N 1

N 1
G

H 2
A 1 J 1
J
L

Shaft Dimensions Eye bolt Dimensions Mass
diam. Housing acc. to Other Housing
DIN 580 type
d a H 1 H 2 J J 1 L N N 1 s G G 1 G 2 B a s 1 A B
mm mm – mm kg
60 80 25 220 50 280 – 19 2 16 M 8 – 32 6 8,9 9,3
80 110 38 290 60 370 – 24 2 20 M 8 M 10 40 5 21 23
90 115 35 300 60 370 – 24 2 20 M 8 M 12 45 11 23 25 10.1
100 130 40 300 80 400 35 25 2 20 M 12 M 12 52 25 40 45
130 38 340 60 410 – 24 2 20 M 8 M 12 50 11 37 40
140 42 350 70 440 – 28 2 24 M 12 M 16 60 9 46 50
110 115 35 300 60 370 – 24 2 20 M 8 M 12 48 8 19 20
140 40 330 80 410 35 25 2 20 M 12 M 12 56 13 45 50
140 40 360 70 430 – 28 3 24 M 8 M 12 55 6 43 46
150 42 370 75 470 35 30 2 24 M 12 M 16 64 7 50 55
115 130 38 340 60 410 – 24 2 20 M 8 M 12 52 9 28 30
145 40 350 80 430 35 25 2 20 M 12 M 12 58 15 50 55
145 42 370 80 455 – 28 3 24 M 10 M 12 57 5 52 56
160 45 400 85 500 40 30 2 24 M 12 M 16 66 5 60 65
125 140 40 360 70 430 – 28 3 24 M 8 M 12 54 7 32 35
155 45 380 85 470 35 25 2 20 M 12 M 12 62 16 58 65
165 50 420 95 510 – 35 3 30 M 10 M 12 62 13 65 70
170 50 430 85 530 40 30 3 24 M 16 M 20 72 9 74 80
135 145 42 370 80 455 – 28 3 24 M 10 M 12 56 6 37 40
170 60 450 110 580 45 35 3 24 M 12 M 16 70 15 78 85
180 52 450 100 540 – 35 3 30 M 12 M 16 66 14 77 82
180 54 450 90 550 45 35 3 30 M 16 M 20 78 7 87 95
140 155 45 390 90 480 – 28 3 24 M 10 M 12 62 6 41 45
180 55 430 110 540 40 30 3 24 M 12 M 16 75 15 90 100
185 55 480 105 570 – 35 3 30 M 12 M 16 72 8 90 96
190 58 490 105 600 – 35 3 30 M 16 M 20 84 6 100 110
