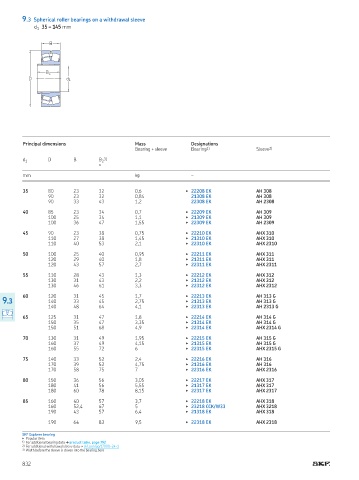

9.3 Spherical roller bearings on a withdrawal sleeve
d 35 – 145 mm
1

B

B 2
D d 1

Principal dimensions Mass Designations
Bearing + sleeve Bearing 1) Sleeve 2)
d 1 D B B 3)
2
≈
mm kg –

35 80 23 32 0,6 ▶ 22208 EK AH 308
90 23 32 0,84 21308 EK AH 308
90 33 43 1,2 22308 EK AH 2308

40 85 23 34 0,7 ▶ 22209 EK AH 309
100 25 34 1,1 ▶ 21309 EK AH 309
100 36 47 1,55 ▶ 22309 EK AH 2309

45 90 23 38 0,75 ▶ 22210 EK AHX 310
110 27 38 1,45 ▶ 21310 EK AHX 310
110 40 53 2,1 ▶ 22310 EK AHX 2310

50 100 25 40 0,95 ▶ 22211 EK AHX 311
120 29 40 1,8 ▶ 21311 EK AHX 311
120 43 57 2,7 ▶ 22311 EK AHX 2311

55 110 28 43 1,3 ▶ 22212 EK AHX 312
130 31 43 2,2 ▶ 21312 EK AHX 312
130 46 61 3,3 ▶ 22312 EK AHX 2312

60 120 31 45 1,7 ▶ 22213 EK AH 313 G
9.3 140 33 45 2,75 ▶ 21313 EK AH 313 G
140 48 64 4,1 ▶ 22313 EK AH 2313 G

65 125 31 47 1,8 ▶ 22214 EK AH 314 G
150 35 47 3,35 ▶ 21314 EK AH 314 G
150 51 68 4,9 ▶ 22314 EK AHX 2314 G

70 130 31 49 1,95 ▶ 22215 EK AH 315 G
160 37 49 4,15 ▶ 21315 EK AH 315 G
160 55 72 6 ▶ 22315 EK AHX 2315 G

75 140 33 52 2,4 ▶ 22216 EK AH 316
170 39 52 4,75 ▶ 21316 EK AH 316
170 58 75 7 ▶ 22316 EK AHX 2316

80 150 36 56 3,05 ▶ 22217 EK AHX 317
180 41 56 5,55 ▶ 21317 EK AHX 317
180 60 78 8,15 ▶ 22317 EK AHX 2317

85 160 40 57 3,7 ▶ 22218 EK AHX 318
160 52,4 67 5 ▶ 23218 CCK/W33 AHX 3218
190 43 57 6,4 ▶ 21318 EK AHX 318

190 64 83 9,5 ▶ 22318 EK AHX 2318

SKF Explorer bearing
▶ Popular item
1) For additional bearing data † product table, page 792
2) For additional withdrawal sleeve data † skf com/go/17000-24-1
3) Width before the sleeve is driven into the bearing bore
