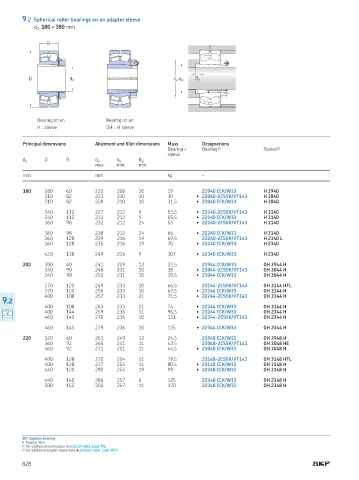

9.2 Spherical roller bearings on an adapter sleeve
d 180 – 380 mm
1
B

D d 1 d a d b B a

Bearing on an Bearing on an
H sleeve OH H sleeve

Principal dimensions Abutment and illet dimensions Mass Designations
Bearing + Bearing 1) Sleeve 2)
sleeve
d 1 D B d a d b B a
max min min
mm mm kg –

180 280 60 222 208 10 19 23940 CCK/W33 H 3940
310 82 223 210 10 30 ▶ 23040-2CS5K/VT143 H 3040
310 82 228 210 10 31,5 ▶ 23040 CCK/W33 H 3040

340 112 227 212 9 53,5 ▶ 23140-2CS5K/VT143 H 3140
340 112 231 212 9 55,5 ▶ 23140 CCK/W33 H 3140
360 98 232 212 24 53 ▶ 22240-2CS5K/VT143 H 3140

360 98 238 212 24 66 ▶ 22240 CCK/W33 H 3140
360 128 229 216 19 69,5 23240-2CS5K/VT143 H 2340 L
360 128 235 216 19 70 ▶ 23240 CCK/W33 H 2340

420 138 249 216 9 107 ▶ 22340 CCK/W33 H 2340

200 300 60 241 229 12 22,5 23944 CCK/W33 OH 3944 H
340 90 245 231 10 38 ▶ 23044-2CS5K/VT143 OH 3044 H
340 90 250 231 10 39,5 ▶ 23044 CCK/W33 OH 3044 H

370 120 249 233 10 66,5 23144-2CS5K/VT143 OH 3144 HTL
370 120 255 233 10 67,5 ▶ 23144 CCK/W33 OH 3144 H
400 108 257 233 21 71,5 ▶ 22244-2CS5K/VT143 OH 3144 H
9.2
400 108 263 233 21 74 ▶ 22244 CCK/W33 OH 3144 H
400 144 259 236 11 96,5 ▶ 23244 CCK/W33 OH 2344 H
460 145 270 236 10 131 ▶ 22344-2CS5K/VT143 OH 2344 H

460 145 279 236 10 135 ▶ 22344 CCK/W33 OH 2344 H

220 320 60 261 249 12 24,5 23948 CCK/W33 OH 3948 H
360 92 265 251 11 42,5 23048-2CS5K/VT143 OH 3048 HE
360 92 271 251 11 44,5 ▶ 23048 CCK/W33 OH 3048 H

400 128 270 254 11 79,5 23148-2CS5K/VT143 OH 3148 HTL
400 128 277 254 11 80,5 ▶ 23148 CCK/W33 OH 3148 H
440 120 290 254 19 99 ▶ 22248 CCK/W33 OH 3148 H

440 160 286 257 6 125 23248 CCK/W33 OH 2348 H
500 155 303 257 11 170 22348 CCK/W33 OH 2348 H

SKF Explorer bearing
▶ Popular item
1) For additional bearing data † product table, page 792
2) For additional adapter sleeve data † product table, page 1072
