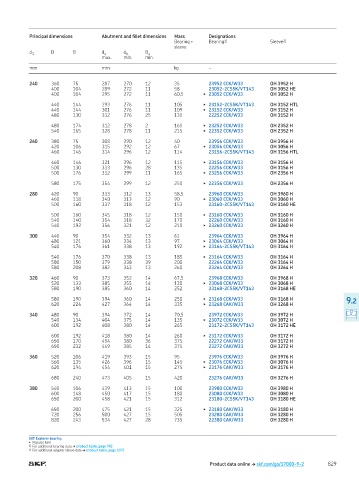

P. 831
Principal dimensions Abutment and illet dimensions Mass Designations
Bearing + Bearing 1) Sleeve 2)
sleeve
d 1 D B d a d b B a
max min min
mm mm kg –
240 360 75 287 270 12 35 23952 CCK/W33 OH 3952 H
400 104 289 272 11 58 23052-2CS5K/VT143 OH 3052 HE
400 104 295 272 11 60,5 ▶ 23052 CCK/W33 OH 3052 H
440 144 293 276 11 105 ▶ 23152-2CS5K/VT143 OH 3152 HTL
440 144 301 276 11 109 ▶ 23152 CCK/W33 OH 3152 H
480 130 312 276 25 130 22252 CCK/W33 OH 3152 H
480 174 312 278 2 160 ▶ 23252 CCK/W33 OH 2352 H
540 165 328 278 11 215 ▶ 22352 CCK/W33 OH 2352 H
260 380 75 308 290 12 40 23956 CCK/W33 OH 3956 H
420 106 315 292 12 67 ▶ 23056 CCK/W33 OH 3056 H
460 146 314 296 12 114 23156-2CS5K/VT143 OH 3156 HTL
460 146 321 296 12 115 ▶ 23156 CCK/W33 OH 3156 H
500 130 333 296 28 135 22256 CCK/W33 OH 3156 H
500 176 332 299 11 165 ▶ 23256 CCK/W33 OH 2356 H
580 175 354 299 12 250 ▶ 22356 CCK/W33 OH 2356 H
280 420 90 333 312 13 58,5 23960 CCK/W33 OH 3960 H
460 118 340 313 12 90 ▶ 23060 CCK/W33 OH 3060 H
500 160 337 318 12 153 23160-2CS5K/VT143 OH 3160 HE
500 160 345 318 12 150 ▶ 23160 CCK/W33 OH 3160 H
540 140 354 318 32 170 22260 CCK/W33 OH 3160 H
540 192 356 321 12 210 ▶ 23260 CCK/W33 OH 3260 H
300 440 90 354 332 13 61 23964 CCK/W33 OH 3964 H
480 121 360 334 13 97 ▶ 23064 CCK/W33 OH 3064 H
540 176 361 338 13 192 ▶ 23164-2CS5K/VT143 OH 3164 H
540 176 370 338 13 185 ▶ 23164 CCK/W33 OH 3164 H
580 150 379 338 39 200 22264 CCK/W33 OH 3164 H
580 208 382 343 13 260 23264 CCK/W33 OH 3264 H
320 460 90 373 352 14 67,5 23968 CCK/W33 OH 3968 H
520 133 385 355 14 130 ▶ 23068 CCK/W33 OH 3068 H
580 190 385 360 14 252 23168-2CS5K/VT143 OH 3168 HE
580 190 394 360 14 250 ▶ 23168 CCK/W33 OH 3168 H 9.2
620 224 427 364 14 335 ▶ 23268 CAK/W33 OH 3268 H
340 480 90 394 372 14 70,5 23972 CCK/W33 OH 3972 H
540 134 404 375 14 135 ▶ 23072 CCK/W33 OH 3072 H
600 192 408 380 14 265 23172-2CS5K/VT143 OH 3172 HE
600 192 418 380 14 260 ▶ 23172 CCK/W33 OH 3172 H
650 170 454 380 36 375 22272 CAK/W33 OH 3172 H
650 232 449 385 14 375 23272 CAK/W33 OH 3272 H
360 520 106 419 393 15 95 23976 CCK/W33 OH 3976 H
560 135 426 396 15 145 ▶ 23076 CCK/W33 OH 3076 H
620 194 454 401 15 275 ▶ 23176 CAK/W33 OH 3176 H
680 240 473 405 15 420 23276 CAK/W33 OH 3276 H
380 540 106 439 413 15 100 23980 CCK/W33 OH 3980 H
600 148 450 417 15 180 23080 CCK/W33 OH 3080 H
650 200 458 421 15 312 23180-2CS5K/VT143 OH 3180 HE
650 200 475 421 15 325 ▶ 23180 CAK/W33 OH 3180 H
720 256 500 427 15 505 23280 CAK/W33 OH 3280 H
820 243 534 427 28 735 22380 CAK/W33 OH 3280 H
SKF Explorer bearing
▶ Popular item
1) For additional bearing data † product table, page 792
2) For additional adapter sleeve data † product table, page 1072
Product data online † skf.com/go/17000-9-2 829
