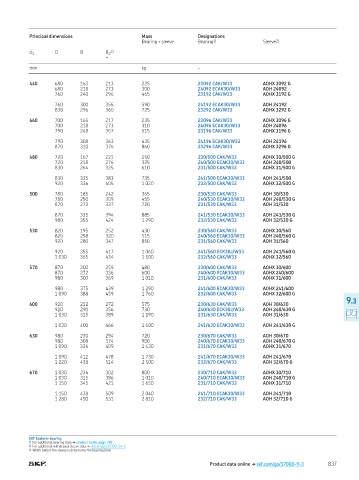

Page 839 - Rollingbearings

Principal dimensions Mass Designations
Bearing + sleeve Bearing 1) Sleeve 2)
d 1 D B B 3)
2
≈
mm kg –

440 680 163 213 225 23092 CAK/W33 AOHX 3092 G
680 218 273 300 24092 ECAK30/W33 AOH 24092
760 240 296 465 23192 CAK/W33 AOHX 3192 G

760 300 355 590 24192 ECAK30/W33 AOH 24192
830 296 360 725 23292 CAK/W33 AOHX 3292 G

460 700 165 217 235 23096 CAK/W33 AOHX 3096 G
700 218 273 310 24096 ECAK30/W33 AOH 24096
790 248 307 515 23196 CAK/W33 AOHX 3196 G

790 308 363 635 24196 ECAK30/W33 AOH 24196
870 310 376 860 23296 CAK/W33 AOHX 3296 G

480 720 167 221 250 230/500 CAK/W33 AOHX 30/500 G
720 218 276 325 240/500 ECAK30/W33 AOH 240/500
830 264 325 610 231/500 CAK/W33 AOHX 31/500 G

830 325 383 735 241/500 ECAK30/W33 AOH 241/500
920 336 405 1 020 232/500 CAK/W33 AOHX 32/500 G

500 780 185 242 365 230/530 CAK/W33 AOH 30/530
780 250 309 455 240/530 ECAK30/W33 AOH 240/530 G
870 272 337 720 231/530 CAK/W33 AOH 31/530

870 335 394 885 241/530 ECAK30/W33 AOH 241/530 G
980 355 424 1 290 232/530 CAK/W33 AOH 32/530 G

530 820 195 252 430 230/560 CAK/W33 AOHX 30/560
820 258 320 515 240/560 ECAK30/W33 AOH 240/560 G
920 280 347 850 231/560 CAK/W33 AOH 31/560

920 355 417 1 060 241/560 ECK30J/W33 AOH 241/560 G
1 030 365 434 1 500 232/560 CAK/W33 AOHX 32/560

570 870 200 259 480 230/600 CAK/W33 AOHX 30/600
870 272 336 600 240/600 ECAK30/W33 AOHX 240/600
980 300 369 1 010 231/600 CAK/W33 AOHX 31/600

980 375 439 1 290 241/600 ECAK30/W33 AOHX 241/600
1 090 388 459 1 760 232/600 CAK/W33 AOHX 32/600 G
9.3
600 920 212 272 575 230/630 CAK/W33 AOH 30/630
920 290 356 730 240/630 ECK30J/W33 AOH 240/630 G
1 030 315 389 1 190 231/630 CAK/W33 AOH 31/630

1 030 400 466 1 500 241/630 ECAK30/W33 AOH 241/630 G

630 980 230 294 720 230/670 CAK/W33 AOH 30/670
980 308 374 900 240/670 ECAK30/W33 AOH 240/670 G
1 090 336 409 1 430 231/670 CAK/W33 AOHX 31/670

1 090 412 478 1 730 241/670 ECAK30/W33 AOH 241/670
1 220 438 514 2 500 232/670 CAK/W33 AOH 32/670 G

670 1 030 236 302 800 230/710 CAK/W33 AOHX 30/710
1 030 315 386 1 010 240/710 ECAK30/W33 AOH 240/710 G
1 150 345 421 1 650 231/710 CAK/W33 AOHX 31/710

1 150 438 509 2 040 241/710 ECAK30/W33 AOH 241/710
1 280 450 531 2 810 232/710 CAK/W33 AOH 32/710 G

SKF Explorer bearing
1) For additional bearing data † product table, page 792
2) For additional withdrawal sleeve data † skf com/go/17000-24-1
3) Width before the sleeve is driven into the bearing bore

Product data online † skf.com/go/17000-9-3 837
