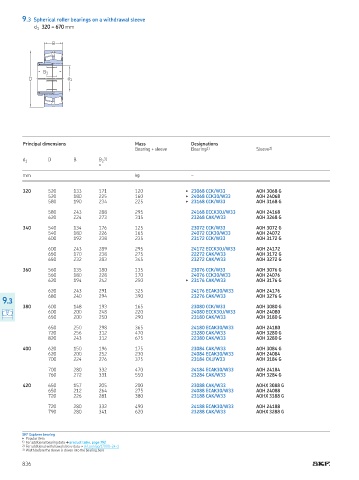

9.3 Spherical roller bearings on a withdrawal sleeve
d 320 – 670 mm
1

B

B 1
D d 1

Principal dimensions Mass Designations
Bearing + sleeve Bearing 1) Sleeve 2)
d 1 D B B 3)
2
≈
mm kg –

320 520 133 171 120 ▶ 23068 CCK/W33 AOH 3068 G
520 180 225 160 ▶ 24068 CCK30/W33 AOH 24068
580 190 234 225 ▶ 23168 CCK/W33 AOH 3168 G

580 243 288 295 24168 ECCK30J/W33 AOH 24168
620 224 273 315 23268 CAK/W33 AOH 3268 G

340 540 134 176 125 23072 CCK/W33 AOH 3072 G
540 180 226 165 24072 CCK30/W33 AOH 24072
600 192 238 235 23172 CCK/W33 AOH 3172 G

600 243 289 295 24172 ECCK30J/W33 AOH 24172
650 170 238 275 22272 CAK/W33 AOH 3172 G
650 232 283 345 23272 CAK/W33 AOH 3272 G

360 560 135 180 135 23076 CCK/W33 AOH 3076 G
560 180 228 170 24076 CCK30/W33 AOH 24076
620 194 242 250 ▶ 23176 CAK/W33 AOH 3176 G

620 243 291 325 24176 ECAK30/W33 AOH 24176
680 240 294 390 23276 CAK/W33 AOH 3276 G
9.3
380 600 148 193 165 23080 CCK/W33 AOH 3080 G
600 200 248 220 24080 ECCK30J/W33 AOH 24080
650 200 250 290 23180 CAK/W33 AOH 3180 G

650 250 298 365 24180 ECAK30/W33 AOH 24180
720 256 312 470 23280 CAK/W33 AOH 3280 G
820 243 312 675 22380 CAK/W33 AOH 3280 G

400 620 150 196 175 23084 CAK/W33 AOH 3084 G
620 200 252 230 24084 ECAK30/W33 AOH 24084
700 224 276 375 23184 CKJ/W33 AOH 3184 G

700 280 332 470 24184 ECAK30/W33 AOH 24184
760 272 331 550 23284 CAK/W33 AOH 3284 G

420 650 157 205 200 23088 CAK/W33 AOHX 3088 G
650 212 264 275 24088 ECAK30/W33 AOH 24088
720 226 281 380 23188 CAK/W33 AOHX 3188 G

720 280 332 490 24188 ECAK30/W33 AOH 24188
790 280 341 620 23288 CAK/W33 AOHX 3288 G

SKF Explorer bearing
▶ Popular item
1) For additional bearing data † product table, page 792
2) For additional withdrawal sleeve data † skf com/go/17000-24-1
3) Width before the sleeve is driven into the bearing bore
