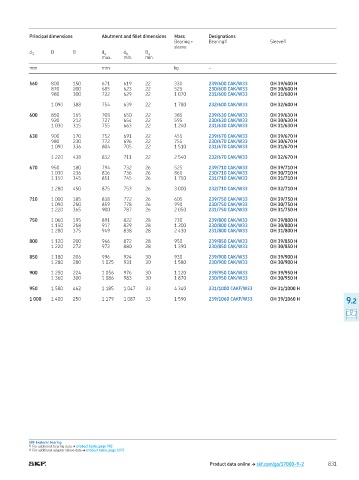

Principal dimensions Abutment and illet dimensions Mass Designations
Bearing + Bearing 1) Sleeve 2)
sleeve
d 1 D B d a d b B a
max min min

mm mm kg –

560 800 150 671 619 22 330 239/600 CAK/W33 OH 39/600 H
870 200 685 623 22 525 230/600 CAK/W33 OH 30/600 H
980 300 722 629 22 1 070 231/600 CAK/W33 OH 31/600 H

1 090 388 754 639 22 1 780 232/600 CAK/W33 OH 32/600 H

600 850 165 708 650 22 385 239/630 CAK/W33 OH 39/630 H
920 212 727 654 22 595 230/630 CAK/W33 OH 30/630 H
1 030 315 755 663 22 1 240 231/630 CAK/W33 OH 31/630 H

630 900 170 752 691 22 455 239/670 CAK/W33 OH 39/670 H
980 230 772 696 22 755 230/670 CAK/W33 OH 30/670 H
1 090 336 804 705 22 1 510 231/670 CAK/W33 OH 31/670 H

1 220 438 832 711 22 2 540 232/670 CAK/W33 OH 32/670 H

670 950 180 794 732 26 525 239/710 CAK/W33 OH 39/710 H
1 030 236 816 736 26 860 230/710 CAK/W33 OH 30/710 H
1 150 345 851 745 26 1 750 231/710 CAK/W33 OH 31/710 H

1 280 450 875 753 26 3 000 232/710 CAK/W33 OH 32/710 H

710 1 000 185 838 772 26 605 239/750 CAK/W33 OH 39/750 H
1 090 250 859 778 26 990 230/750 CAK/W33 OH 30/750 H
1 220 365 900 787 26 2 050 231/750 CAK/W33 OH 31/750 H

750 1 060 195 891 822 28 730 239/800 CAK/W33 OH 39/800 H
1 150 258 917 829 28 1 200 230/800 CAK/W33 OH 30/800 H
1 280 375 949 838 28 2 430 231/800 CAK/W33 OH 31/800 H

800 1 120 200 946 872 28 950 239/850 CAK/W33 OH 39/850 H
1 220 272 972 880 28 1 390 230/850 CAK/W33 OH 30/850 H

850 1 180 206 996 924 30 930 239/900 CAK/W33 OH 39/900 H
1 280 280 1 025 931 30 1 580 230/900 CAK/W33 OH 30/900 H

900 1 250 224 1 056 976 30 1 120 239/950 CAK/W33 OH 39/950 H
1 360 300 1 086 983 30 1 870 230/950 CAK/W33 OH 30/950 H

950 1 580 462 1 185 1 047 33 4 340 231/1000 CAKF/W33 OH 31/1000 H

1 000 1 400 250 1 179 1 087 33 1 590 239/1060 CAKF/W33 OH 39/1060 H 9.2

SKF Explorer bearing
1) For additional bearing data † product table, page 792
2) For additional adapter sleeve data † product table, page 1072

Product data online † skf.com/go/17000-9-2 831
