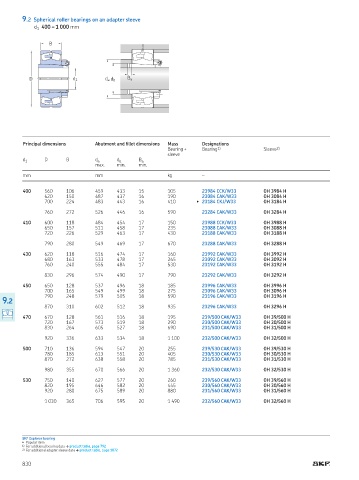

9.2 Spherical roller bearings on an adapter sleeve
d 400 – 1 000 mm
1

B

D d 1 d a d b B a

Principal dimensions Abutment and illet dimensions Mass Designations
Bearing + Bearing 1) Sleeve 2)
sleeve
d 1 D B d a d b B a
max min min
mm mm kg –

400 560 106 459 433 15 105 23984 CCK/W33 OH 3984 H
620 150 487 437 16 190 23084 CAK/W33 OH 3084 H
700 224 483 443 16 410 ▶ 23184 CKJ/W33 OH 3184 H

760 272 526 446 16 590 23284 CAK/W33 OH 3284 H

410 600 118 484 454 17 150 23988 CCK/W33 OH 3988 H
650 157 511 458 17 235 23088 CAK/W33 OH 3088 H
720 226 529 463 17 430 23188 CAK/W33 OH 3188 H

790 280 549 469 17 670 23288 CAK/W33 OH 3288 H

430 620 118 516 474 17 160 23992 CAK/W33 OH 3992 H
680 163 533 478 17 265 23092 CAK/W33 OH 3092 H
760 240 555 484 17 530 23192 CAK/W33 OH 3192 H

830 296 574 490 17 790 23292 CAK/W33 OH 3292 H

450 650 128 537 496 18 185 23996 CAK/W33 OH 3996 H
700 165 549 499 18 275 23096 CAK/W33 OH 3096 H
790 248 579 505 18 590 23196 CAK/W33 OH 3196 H
9.2
870 310 602 512 18 935 23296 CAK/W33 OH 3296 H

470 670 128 561 516 18 195 239/500 CAK/W33 OH 39/500 H
720 167 573 519 18 290 230/500 CAK/W33 OH 30/500 H
830 264 605 527 18 690 231/500 CAK/W33 OH 31/500 H

920 336 633 534 18 1 100 232/500 CAK/W33 OH 32/500 H

500 710 136 594 547 20 255 239/530 CAK/W33 OH 39/530 H
780 185 613 551 20 405 230/530 CAK/W33 OH 30/530 H
870 272 638 558 20 785 231/530 CAK/W33 OH 31/530 H

980 355 670 566 20 1 360 232/530 CAK/W33 OH 32/530 H

530 750 140 627 577 20 260 239/560 CAK/W33 OH 39/560 H
820 195 646 582 20 445 230/560 CAK/W33 OH 30/560 H
920 280 675 589 20 880 231/560 CAK/W33 OH 31/560 H

1 030 365 706 595 20 1 490 232/560 CAK/W33 OH 32/560 H

SKF Explorer bearing
▶ Popular item
1) For additional bearing data † product table, page 792
2) For additional adapter sleeve data † product table, page 1072
