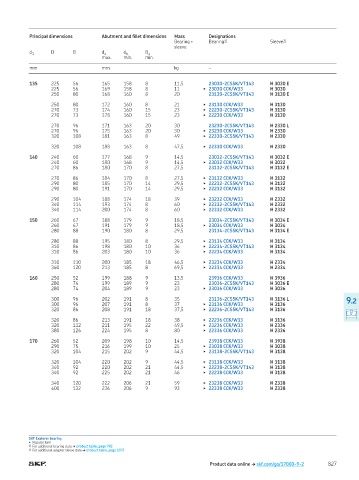

Principal dimensions Abutment and illet dimensions Mass Designations
Bearing + Bearing 1) Sleeve 2)
sleeve
d 1 D B d a d b B a
max min min

mm mm kg –

135 225 56 165 158 8 11,5 23030-2CS5K/VT143 H 3030 E
225 56 169 158 8 11 ▶ 23030 CCK/W33 H 3030
250 80 168 160 8 20 23130-2CS5K/VT143 H 3130 E

250 80 172 160 8 21 ▶ 23130 CCK/W33 H 3130
270 73 174 160 15 23 ▶ 22230-2CS5K/VT143 H 3130
270 73 178 160 15 23 ▶ 22230 CCK/W33 H 3130

270 96 171 163 20 30 23230-2CS5K/VT143 H 2330 L
270 96 175 163 20 30 ▶ 23230 CCK/W33 H 2330
320 108 181 163 8 49 ▶ 22330-2CS5K/VT143 H 2330

320 108 188 163 8 47,5 ▶ 22330 CCK/W33 H 2330

140 240 60 177 168 9 14,5 23032-2CS5K/VT143 H 3032 E
240 60 180 168 9 14,5 ▶ 23032 CCK/W33 H 3032
270 86 180 170 8 27,5 23132-2CS5K/VT143 H 3132 E

270 86 184 170 8 27,5 ▶ 23132 CCK/W33 H 3132
290 80 185 170 14 29,5 ▶ 22232-2CS5K/VT143 H 3132
290 80 191 170 14 29,5 ▶ 22232 CCK/W33 H 3132

290 104 188 174 18 39 ▶ 23232 CCK/W33 H 2332
340 114 193 174 8 60 ▶ 22332-2CS5K/VT143 H 2332
340 114 200 174 8 60 ▶ 22332 CCK/W33 H 2332

150 260 67 188 179 9 18,5 23034-2CS5K/VT143 H 3034 E
260 67 191 179 9 18,5 ▶ 23034 CCK/W33 H 3034
280 88 190 180 8 29,5 23134-2CS5K/VT143 H 3134 E

280 88 195 180 8 29,5 ▶ 23134 CCK/W33 H 3134
310 86 198 180 10 36 ▶ 22234-2CS5K/VT143 H 3134
310 86 203 180 10 36 ▶ 22234 CCK/W33 H 3134

310 110 200 185 18 46,5 ▶ 23234 CCK/W33 H 2334
360 120 213 185 8 69,5 ▶ 22334 CCK/W33 H 2334

160 250 52 199 188 9 13,5 23936 CCK/W33 H 3936
280 74 199 189 9 23 23036-2CS5K/VT143 H 3036 E
280 74 204 189 9 23 ▶ 23036 CCK/W33 H 3036

300 96 202 191 8 35 23136-2CS5K/VT143 H 3136 L 9.2
300 96 207 191 8 37 ▶ 23136 CCK/W33 H 3136
320 86 208 191 18 37,5 ▶ 22236-2CS5K/VT143 H 3136

320 86 213 191 18 38 ▶ 22236 CCK/W33 H 3136
320 112 211 195 22 49,5 ▶ 23236 CCK/W33 H 2336
380 126 224 195 8 80 ▶ 22336 CCK/W33 H 2336

170 260 52 209 198 10 14,5 23938 CCK/W33 H 3938
290 75 216 199 10 25 ▶ 23038 CCK/W33 H 3038
320 104 215 202 9 44,5 ▶ 23138-2CS5K/VT143 H 3138

320 104 220 202 9 44,5 ▶ 23138 CCK/W33 H 3138
340 92 220 202 21 44,5 ▶ 22238-2CS5K/VT143 H 3138
340 92 225 202 21 46 ▶ 22238 CCK/W33 H 3138

340 120 222 206 21 59 ▶ 23238 CCK/W33 H 2338
400 132 236 206 9 93 ▶ 22338 CCK/W33 H 2338

SKF Explorer bearing
▶ Popular item
1) For additional bearing data † product table, page 792
2) For additional adapter sleeve data † product table, page 1072

Product data online † skf.com/go/17000-9-2 827
