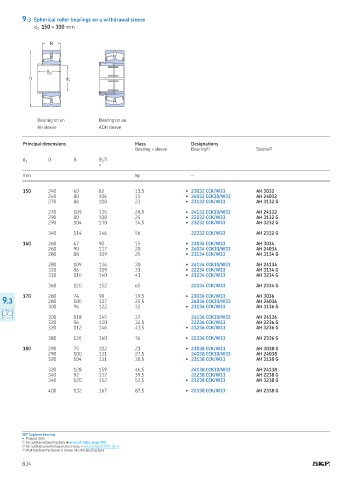

9.3 Spherical roller bearings on a withdrawal sleeve
d 150 – 300 mm
1

B

B 2
D d 1

Bearing on an Bearing on an
AH sleeve AOH sleeve

Principal dimensions Mass Designations
Bearing + sleeve Bearing 1) Sleeve 2)
d 1 D B B 3)
2
≈
mm kg –

150 240 60 82 11,5 ▶ 23032 CCK/W33 AH 3032
240 80 106 15 ▶ 24032 CCK30/W33 AH 24032
270 86 108 23 ▶ 23132 CCK/W33 AH 3132 G

270 109 135 28,5 ▶ 24132 CCK30/W33 AH 24132
290 80 108 25 ▶ 22232 CCK/W33 AH 3132 G
290 104 130 34,5 ▶ 23232 CCK/W33 AH 3232 G

340 114 146 56 22332 CCK/W33 AH 2332 G

160 260 67 90 15 ▶ 23034 CCK/W33 AH 3034
260 90 117 20 ▶ 24034 CCK30/W33 AH 24034
280 88 109 25 ▶ 23134 CCK/W33 AH 3134 G

280 109 136 30 ▶ 24134 CCK30/W33 AH 24134
310 86 109 31 ▶ 22234 CCK/W33 AH 3134 G
310 110 140 41 ▶ 23234 CCK/W33 AH 3234 G

360 120 152 65 22334 CCK/W33 AH 2334 G

170 280 74 98 19,5 ▶ 23036 CCK/W33 AH 3036
9.3 280 100 127 25,5 24036 CCK30/W33 AH 24036
300 96 122 32 ▶ 23136 CCK/W33 AH 3136 G

300 118 145 37 24136 CCK30/W33 AH 24136
320 86 110 32,5 22236 CCK/W33 AH 2236 G
320 112 146 43,5 ▶ 23236 CCK/W33 AH 3236 G

380 126 160 76 ▶ 22336 CCK/W33 AH 2336 G

180 290 75 102 21 ▶ 23038 CCK/W33 AH 3038 G
290 100 131 27,5 24038 CCK30/W33 AH 24038
320 104 131 38,5 ▶ 23138 CCK/W33 AH 3138 G

320 128 159 46,5 24138 CCK30/W33 AH 24138
340 92 117 39,5 22238 CCK/W33 AH 2238 G
340 120 152 52,5 ▶ 23238 CCK/W33 AH 3238 G

400 132 167 87,5 ▶ 22338 CCK/W33 AH 2338 G

SKF Explorer bearing
▶ Popular item
1) For additional bearing data † product table, page 792
2) For additional withdrawal sleeve data † skf com/go/17000-24-1
3) Width before the sleeve is driven into the bearing bore
