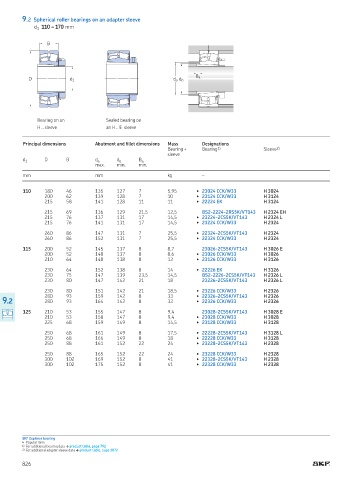

9.2 Spherical roller bearings on an adapter sleeve
d 110 – 170 mm
1

B

D d 1 d a d b B a

Bearing on an Sealed bearing on
H sleeve an H E sleeve

Principal dimensions Abutment and illet dimensions Mass Designations
Bearing + Bearing 1) Sleeve 2)
sleeve
d 1 D B d a d b B a
max min min
mm mm kg –

110 180 46 135 127 7 5,95 ▶ 23024 CCK/W33 H 3024
200 62 139 128 7 10 ▶ 23124 CCK/W33 H 3124
215 58 141 128 11 11 ▶ 22224 EK H 3124

215 69 136 129 21,5 12,5 BS2-2224-2RS5K/VT143 H 2324 EH
215 76 137 131 17 14,5 ▶ 23224-2CS5K/VT143 H 2324 L
215 76 141 131 17 14,5 ▶ 23224 CCK/W33 H 2324

260 86 147 131 7 25,5 ▶ 22324-2CS5K/VT143 H 2324
260 86 152 131 7 25,5 ▶ 22324 CCK/W33 H 2324

115 200 52 145 137 8 8,7 23026-2CS5K/VT143 H 3026 E
200 52 148 137 8 8,6 ▶ 23026 CCK/W33 H 3026
210 64 148 138 8 12 ▶ 23126 CCK/W33 H 3126

230 64 152 138 8 14 ▶ 22226 EK H 3126
230 75 147 139 23,5 14,5 BS2-2226-2CS5K/VT143 H 2326 L
230 80 147 142 21 18 23226-2CS5K/VT143 H 2326 L

230 80 151 142 21 18,5 ▶ 23226 CCK/W33 H 2326
280 93 159 142 8 33 ▶ 22326-2CS5K/VT143 H 2326
9.2 280 93 164 142 8 33 ▶ 22326 CCK/W33 H 2326

125 210 53 155 147 8 9,4 23028-2CS5K/VT143 H 3028 E
210 53 158 147 8 9,4 ▶ 23028 CCK/W33 H 3028
225 68 159 149 8 14,5 ▶ 23128 CCK/W33 H 3128

250 68 161 149 8 17,5 ▶ 22228-2CS5K/VT143 H 3128 L
250 68 166 149 8 18 ▶ 22228 CCK/W33 H 3128
250 88 161 152 22 24 ▶ 23228-2CS5K/VT143 H 2328

250 88 165 152 22 24 ▶ 23228 CCK/W33 H 2328
300 102 169 152 8 41 ▶ 22328-2CS5K/VT143 H 2328
300 102 175 152 8 41 ▶ 22328 CCK/W33 H 2328

SKF Explorer bearing
▶ Popular item
1) For additional bearing data † product table, page 792
2) For additional adapter sleeve data † product table, page 1072
826
