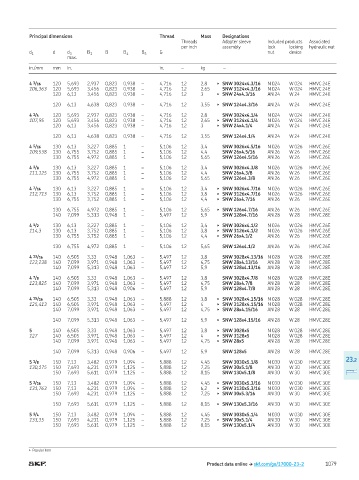

Page 1081 - Rollingbearings
P. 1081
Principal dimensions Thread Mass Designations
Threads Adapter sleeve Included products Associated
per inch assembly lock locking hydraulic nut
d 1 d d 3 B 1 B B 4 B 5 G nut device
max.
in./mm mm in. in. – kg –
4 3 /16 120 5,693 2,937 0,823 0,938 – 4,716 12 2,8 ▶ SNW 3024x4.3/16 N 024 W 024 HMVC 24E
106,363 120 5,693 3,456 0,823 0,938 – 4,716 12 2,65 SNW 3124x4.3/16 N 024 W 024 HMVC 24E
120 6,13 3,456 0,823 0,938 – 4,716 12 3 ▶ SNW 24x4.3/16 AN 24 W 24 HMVC 24E
120 6,13 4,638 0,823 0,938 – 4,716 12 3,55 ▶ SNW 124x4.3/16 AN 24 W 24 HMVC 24E
4 1 /4 120 5,693 2,937 0,823 0,938 – 4,716 12 2,8 SNW 3024x4.1/4 N 024 W 024 HMVC 24E
107,95 120 5,693 3,456 0,823 0,938 – 4,716 12 2,65 ▶ SNW 3124x4.1/4 N 024 W 024 HMVC 24E
120 6,13 3,456 0,823 0,938 – 4,716 12 3 ▶ SNW 24x4.1/4 AN 24 W 24 HMVC 24E
120 6,13 4,638 0,823 0,938 – 4,716 12 3,55 SNW 124x4.1/4 AN 24 W 24 HMVC 24E
4 5 /16 130 6,13 3,227 0,885 1 – 5,106 12 3,4 SNW 3026x4.5/16 N 026 W 026 HMVC 26E
109,538 130 6,755 3,752 0,885 1 – 5,106 12 4,4 SNW 26x4.5/16 AN 26 W 26 HMVC 26E
130 6,755 4,972 0,885 1 – 5,106 12 5,65 SNW 126x4.5/16 AN 26 W 26 HMVC 26E
4 3 /8 130 6,13 3,227 0,885 1 – 5,106 12 3,4 SNW 3026x4.3/8 N 026 W 026 HMVC 26E
111,125 130 6,755 3,752 0,885 1 – 5,106 12 4,4 SNW 26x4.3/8 AN 26 W 26 HMVC 26E
130 6,755 4,972 0,885 1 – 5,106 12 5,65 SNW 126x4.3/8 AN 26 W 26 HMVC 26E
4 7 /16 130 6,13 3,227 0,885 1 – 5,106 12 3,4 ▶ SNW 3026x4.7/16 N 026 W 026 HMVC 26E
112,713 130 6,13 3,752 0,885 1 – 5,106 12 3,8 ▶ SNW 3126x4.7/16 N 026 W 026 HMVC 26E
130 6,755 3,752 0,885 1 – 5,106 12 4,4 ▶ SNW 26x4.7/16 AN 26 W 26 HMVC 26E
130 6,755 4,972 0,885 1 – 5,106 12 5,65 ▶ SNW 126x4.7/16 AN 26 W 26 HMVC 26E
140 7,099 5,313 0,948 1 – 5,497 12 5,9 SNW 128x4.7/16 AN 28 W 28 HMVC 28E
4 1 /2 130 6,13 3,227 0,885 1 – 5,106 12 3,4 ▶ SNW 3026x4.1/2 N 026 W 026 HMVC 26E
114,3 130 6,13 3,752 0,885 1 – 5,106 12 3,8 ▶ SNW 3126x4.1/2 N 026 W 026 HMVC 26E
130 6,755 3,752 0,885 1 – 5,106 12 4,4 ▶ SNW 26x4.1/2 AN 26 W 26 HMVC 26E
130 6,755 4,972 0,885 1 – 5,106 12 5,65 SNW 126x4.1/2 AN 26 W 26 HMVC 26E
4 13 /16 140 6,505 3,33 0,948 1,063 – 5,497 12 3,8 SNW 3028x4.13/16 N 028 W 028 HMVC 28E
122,238 140 7,099 3,971 0,948 1,063 – 5,497 12 4,75 SNW 28x4.13/16 AN 28 W 28 HMVC 28E
140 7,099 5,313 0,948 1,063 – 5,497 12 5,9 SNW 128x4.13/16 AN 28 W 28 HMVC 28E
4 7 /8 140 6,505 3,33 0,948 1,063 – 5,497 12 3,8 SNW 3028x4.7/8 N 028 W 028 HMVC 28E
123,825 140 7,099 3,971 0,948 1,063 – 5,497 12 4,75 SNW 28x4.7/8 AN 28 W 28 HMVC 28E
140 7,099 5,313 0,948 0,906 – 5,497 12 5,9 SNW 128x4.7/8 AN 28 W 28 HMVC 28E
4 15 /16 140 6,505 3,33 0,948 1,063 – 5,888 12 3,8 ▶ SNW 3028x4.15/16 N 028 W 028 HMVC 28E
125,413 140 6,505 3,971 0,948 1,063 – 5,497 12 4 ▶ SNW 3128x4.15/16 N 028 W 028 HMVC 28E
140 7,099 3,971 0,948 1,063 – 5,497 12 4,75 ▶ SNW 28x4.15/16 AN 28 W 28 HMVC 28E
140 7,099 5,313 0,948 1,063 – 5,497 12 5,9 ▶ SNW 128x4.15/16 AN 28 W 28 HMVC 28E
5 140 6,505 3,33 0,948 1,063 – 5,497 12 3,8 ▶ SNW 3028x5 N 028 W 028 HMVC 28E
127 140 6,505 3,971 0,948 1,063 – 5,497 12 4 ▶ SNW 3128x5 N 028 W 028 HMVC 28E
140 7,099 3,971 0,948 1,063 – 5,497 12 4,75 ▶ SNW 28x5 AN 28 W 28 HMVC 28E
140 7,099 5,313 0,948 0,906 – 5,497 12 5,9 SNW 128x5 AN 28 W 28 HMVC 28E
5 1 /8 150 7,13 3,482 0,979 1,094 – 5,888 12 4,45 SNW 3030x5.1/8 N 030 W 030 HMVC 30E 23.2
130,175 150 7,693 4,231 0,979 1,125 – 5,888 12 7,25 SNW 30x5.1/8 AN 30 W 30 HMVC 30E
150 7,693 5,611 0,979 1,125 – 5,888 12 8,15 SNW 130x5.1/8 AN 30 W 30 HMVC 30E
5 3 /16 150 7,13 3,482 0,979 1,094 – 5,888 12 4,45 ▶ SNW 3030x5.3/16 N 030 W 030 HMVC 30E
131,763 150 7,13 4,231 0,979 1,094 – 5,888 12 6,2 ▶ SNW 3130x5.3/16 N 030 W 030 HMVC 30E
150 7,693 4,231 0,979 1,125 – 5,888 12 7,25 ▶ SNW 30x5.3/16 AN 30 W 30 HMVC 30E
150 7,693 5,611 0,979 1,125 – 5,888 12 8,15 ▶ SNW 130x5.3/16 AN 30 W 30 HMVC 30E
5 1 /4 150 7,13 3,482 0,979 1,094 – 5,888 12 4,45 SNW 3030x5.1/4 N 030 W 030 HMVC 30E
133,35 150 7,693 4,231 0,979 1,125 – 5,888 12 7,25 ▶ SNW 30x5.1/4 AN 30 W 30 HMVC 30E
150 7,693 5,611 0,979 1,125 – 5,888 12 8,15 SNW 130x5.1/4 AN 30 W 30 HMVC 30E
▶ Popular item
