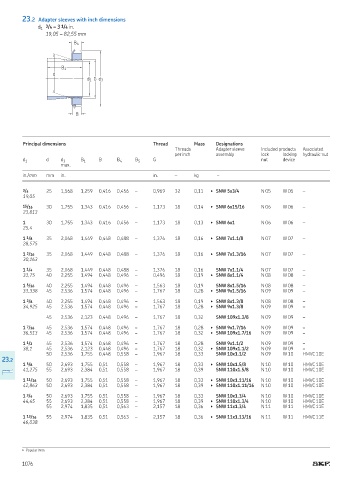

23.2 Adapter sleeves with inch dimensions
d 3 /4 – 3 1 /4 in
1
19,05 – 82,55 mm
B 4

B 1
d
d 1 G d 3

B

Principal dimensions Thread Mass Designations
Threads Adapter sleeve Included products Associated
per inch assembly lock locking hydraulic nut
d 1 d d 3 B 1 B B 4 B 5 G nut device
max
in /mm mm in in – kg –

3 /4 25 1,568 1,259 0,416 0,456 – 0,969 32 0,11 ▶ SNW 5x3/4 N 05 W 05 –
19,05

15 /16 30 1,755 1,343 0,416 0,456 – 1,173 18 0,14 ▶ SNW 6x15/16 N 06 W 06 –
23,813

1 30 1,755 1,343 0,416 0,456 – 1,173 18 0,13 ▶ SNW 6x1 N 06 W 06 –
25,4

1 1 /8 35 2,068 1,449 0,448 0,488 – 1,376 18 0,16 ▶ SNW 7x1.1/8 N 07 W 07 –
28,575

1 3 /16 35 2,068 1,449 0,448 0,488 – 1,376 18 0,16 ▶ SNW 7x1.3/16 N 07 W 07 –
30,163

1 1 /4 35 2,068 1,449 0,448 0,488 – 1,376 18 0,16 SNW 7x1.1/4 N 07 W 07 –
31,75 40 2,255 1,494 0,448 0,496 – 0,496 18 0,19 ▶ SNW 8x1.1/4 N 08 W 08 –

1 5 /16 40 2,255 1,494 0,448 0,496 – 1,563 18 0,19 SNW 8x1.5/16 N 08 W 08 –
33,338 45 2,536 1,574 0,448 0,496 – 1,767 18 0,28 ▶ SNW 9x1.5/16 N 09 W 09 –

1 3 /8 40 2,255 1,494 0,448 0,496 – 1,563 18 0,19 ▶ SNW 8x1.3/8 N 08 W 08 –
34,925 45 2,536 1,574 0,448 0,496 – 1,767 18 0,28 ▶ SNW 9x1.3/8 N 09 W 09 –

45 2,536 2,123 0,448 0,496 – 1,767 18 0,32 SNW 109x1.3/8 N 09 W 09 –

1 7 /16 45 2,536 1,574 0,448 0,496 – 1,767 18 0,28 ▶ SNW 9x1.7/16 N 09 W 09 –
36,513 45 2,536 1,574 0,448 0,496 – 1,767 18 0,32 ▶ SNW 109x1.7/16 N 09 W 09 –

1 1 /2 45 2,536 1,574 0,448 0,496 – 1,767 18 0,28 SNW 9x1.1/2 N 09 W 09 –
38,1 45 2,536 2,123 0,448 0,496 – 1,767 18 0,32 ▶ SNW 109x1.1/2 N 09 W 09 –
50 2,536 1,755 0,448 0,558 – 1,967 18 0,33 SNW 10x1.1/2 N 09 W 10 HMVC 10E
23.2
1 5 /8 50 2,693 1,755 0,51 0,558 – 1,967 18 0,33 ▶ SNW 10x1.5/8 N 10 W 10 HMVC 10E
41,275 55 2,693 2,384 0,51 0,558 – 1,967 18 0,39 SNW 110x1.5/8 N 10 W 10 HMVC 10E

1 11 /16 50 2,693 1,755 0,51 0,558 – 1,967 18 0,33 ▶ SNW 10x1.11/16 N 10 W 10 HMVC 10E
42,863 50 2,693 2,384 0,51 0,558 – 1,967 18 0,39 ▶ SNW 110x1.11/16 N 10 W 10 HMVC 10E

1 3 /4 50 2,693 1,755 0,51 0,558 – 1,967 18 0,33 SNW 10x1.3/4 N 10 W 10 HMVC 10E
44,45 55 2,693 2,384 0,51 0,558 – 1,967 18 0,39 ▶ SNW 110x1.3/4 N 10 W 10 HMVC 10E
55 2,974 1,835 0,51 0,563 – 2,157 18 0,36 ▶ SNW 11x1.3/4 N 11 W 11 HMVC 11E

1 13 /16 55 2,974 1,835 0,51 0,563 – 2,157 18 0,36 ▶ SNW 11x1.13/16 N 11 W 11 HMVC 11E
46,038

▶ Popular item
