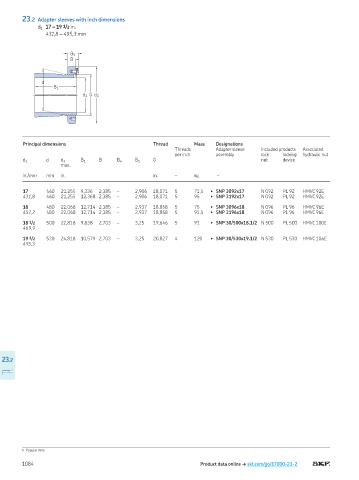

23.2 Adapter sleeves with inch dimensions
d 17 – 19 1 /2 in
1
431,8 – 495,3 mm

B 5
B

d
B 1
d 1 G d 3

Principal dimensions Thread Mass Designations
Threads Adapter sleeve Included products Associated
per inch assembly lock locking hydraulic nut
d 1 d d 3 B 1 B B 4 B 5 G nut device
max.
in./mm mm in. in. – kg –

17 460 21,255 9,336 2,385 – 2,906 18,071 5 71,5 ▶ SNP 3092x17 N 092 PL 92 HMVC 92E
431,8 460 21,255 12,368 2,385 – 2,906 18,071 5 95 ▶ SNP 3192x17 N 092 PL 92 HMVC 92E

18 480 22,068 12,714 2,385 – 2,937 18,858 5 75 ▶ SNP 3096x18 N 096 PL 96 HMVC 96E
457,2 480 22,068 12,714 2,385 – 2,937 18,858 5 91,5 ▶ SNP 3196x18 N 096 PL 96 HMVC 96E

18 1 /2 500 22,818 9,838 2,703 – 3,25 19,646 5 91 ▶ SNP 30/500x18.1/2 N 500 PL 500 HMVC 100E
469,9

19 1 /2 530 24,818 10,579 2,703 – 3,25 20,827 4 120 ▶ SNP 30/530x19.1/2 N 530 PL 530 HMVC 106E
495,3

23.2

▶ Popular item

1084 Product data online † skf.com/go/17000-23-2
