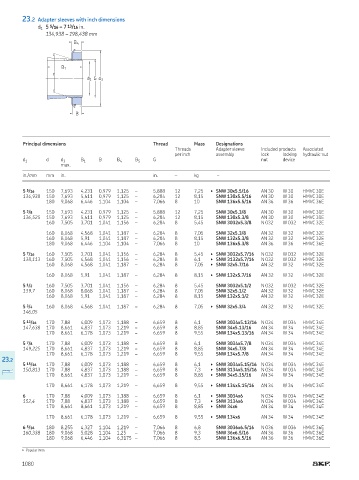

23.2 Adapter sleeves with inch dimensions
d 5 5 /16 – 7 13 /16 in
1
134,938 – 198,438 mm
B 4

B 1
d
d 1 G d 3

B

Principal dimensions Thread Mass Designations
Threads Adapter sleeve Included products Associated
per inch assembly lock locking hydraulic nut
d 1 d d 3 B 1 B B 4 B 5 G nut device
max
in /mm mm in in – kg –

5 5 /16 150 7,693 4,231 0,979 1,125 – 5,888 12 7,25 ▶ SNW 30x5.5/16 AN 30 W 30 HMVC 30E
134,938 150 7,693 5,611 0,979 1,125 – 6,284 12 8,15 SNW 130x5.5/16 AN 30 W 30 HMVC 30E
180 9,068 6,446 1,104 1,104 – 7,066 8 10 SNW 136x5.5/16 AN 36 W 36 HMVC 36E

5 3 /8 150 7,693 4,231 0,979 1,125 – 5,888 12 7,25 SNW 30x5.3/8 AN 30 W 30 HMVC 30E
136,525 150 7,693 5,611 0,979 1,125 – 6,284 12 8,15 SNW 130x5.3/8 AN 30 W 30 HMVC 30E
160 7,505 3,701 1,041 1,156 – 6,284 8 5,45 SNW 3032x5.3/8 N 032 W 032 HMVC 32E

160 8,068 4,568 1,041 1,187 – 6,284 8 7,05 SNW 32x5.3/8 AN 32 W 32 HMVC 32E
160 8,068 5,91 1,041 1,187 – 6,284 8 8,15 SNW 132x5.3/8 AN 32 W 32 HMVC 32E
180 9,068 6,446 1,104 1,104 – 7,066 8 10 SNW 136x5.3/8 AN 36 W 36 HMVC 36E

5 7 /16 160 7,505 3,701 1,041 1,156 – 6,284 8 5,45 ▶ SNW 3032x5.7/16 N 032 W 032 HMVC 32E
138,113 160 7,505 4,568 1,041 1,156 – 6,284 8 6,1 ▶ SNW 3132x5.7/16 N 032 W 032 HMVC 32E
160 8,068 4,568 1,041 1,187 – 6,284 8 7,05 ▶ SNW 32x5.7/16 AN 32 W 32 HMVC 32E

160 8,068 5,91 1,041 1,187 – 6,284 8 8,15 ▶ SNW 132x5.7/16 AN 32 W 32 HMVC 32E

5 1 /2 160 7,505 3,701 1,041 1,156 – 6,284 8 5,45 SNW 3032x5.1/2 N 032 W 032 HMVC 32E
139,7 160 8,068 8,068 1,041 1,187 – 6,284 8 7,05 SNW 32x5.1/2 AN 32 W 32 HMVC 32E
160 8,068 5,91 1,041 1,187 – 6,284 8 8,15 SNW 132x5.1/2 AN 32 W 32 HMVC 32E

5 3 /4 160 8,068 4,568 1,041 1,187 – 6,284 8 7,05 ▶ SNW 32x5.3/4 AN 32 W 32 HMVC 32E
146,05

5 13 /16 170 7,88 4,009 1,073 1,188 – 6,659 8 6,1 SNW 3034x5.13/16 N 034 W 034 HMVC 34E
147,638 170 8,661 4,837 1,073 1,219 – 6,659 8 8,85 SNW 34x5.13/16 AN 34 W 34 HMVC 34E
170 8,661 6,178 1,073 1,219 – 6,659 8 9,55 SNW 134x5.13/16 AN 34 W 34 HMVC 34E

5 7 /8 170 7,88 4,009 1,073 1,188 – 6,659 8 6,1 SNW 3034x5.7/8 N 034 W 034 HMVC 34E
149,225 170 8,661 4,837 1,073 1,219 – 6,659 8 8,85 SNW 34x5.7/8 AN 34 W 34 HMVC 34E
170 8,661 6,178 1,073 1,219 – 6,659 8 9,55 SNW 134x5.7/8 AN 34 W 34 HMVC 34E
23.2
5 15 /16 170 7,88 4,009 1,073 1,188 – 6,659 8 6,1 ▶ SNW 3034x5.15/16 N 034 W 034 HMVC 34E
150,813 170 7,88 4,837 1,073 1,188 – 6,659 8 7,3 ▶ SNW 3134x5.15/16 N 034 W 034 HMVC 34E
170 8,661 4,837 1,073 1,219 – 6,659 8 8,85 ▶ SNW 34x5.15/16 AN 34 W 34 HMVC 34E

170 8,661 6,178 1,073 1,219 – 6,659 8 9,55 ▶ SNW 134x5.15/16 AN 34 W 34 HMVC 34E

6 170 7,88 4,009 1,073 1,188 – 6,659 8 6,1 ▶ SNW 3034x6 N 034 W 034 HMVC 34E
152,4 170 7,88 4,837 1,073 1,188 – 6,659 8 7,3 ▶ SNW 3134x6 N 034 W 034 HMVC 34E
170 8,661 8,661 1,073 1,219 – 6,659 8 8,85 ▶ SNW 34x6 AN 34 W 34 HMVC 34E

170 8,661 6,178 1,073 1,219 – 6,659 8 9,55 ▶ SNW 134x6 AN 34 W 34 HMVC 34E

6 5 /16 180 8,255 4,327 1,104 1,219 – 7,066 8 6,8 SNW 3036x6.5/16 N 036 W 036 HMVC 36E
160,338 180 9,068 5,028 1,104 1,25 – 7,066 8 9,3 SNW 36x6.5/16 AN 36 W 36 HMVC 36E
180 9,068 6,446 1,104 6,3175 – 7,066 8 8,5 SNW 136x6.5/16 AN 36 W 36 HMVC 36E

▶ Popular item
