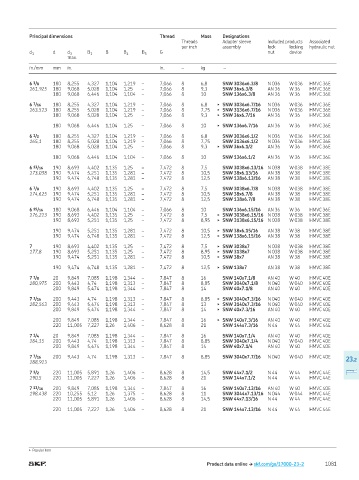

P. 1083
Principal dimensions Thread Mass Designations
Threads Adapter sleeve Included products Associated
per inch assembly lock locking hydraulic nut
d 1 d d 3 B 1 B B 4 B 5 G nut device
max.
in./mm mm in. in. – kg –
6 3 /8 180 8,255 4,327 1,104 1,219 – 7,066 8 6,8 SNW 3036x6.3/8 N 036 W 036 HMVC 36E
161,925 180 9,068 5,028 1,104 1,25 – 7,066 8 9,3 SNW 36x6.3/8 AN 36 W 36 HMVC 36E
180 9,068 6,446 1,104 1,104 – 7,066 8 10 SNW 136x6.3/8 AN 36 W 36 HMVC 36E
6 7 /16 180 8,255 4,327 1,104 1,219 – 7,066 8 6,8 ▶ SNW 3036x6.7/16 N 036 W 036 HMVC 36E
163,513 180 8,255 5,028 1,104 1,219 – 7,066 8 7,75 ▶ SNW 3136x6.7/16 N 036 W 036 HMVC 36E
180 9,068 5,028 1,104 1,25 – 7,066 8 9,3 ▶ SNW 36x6.7/16 AN 36 W 36 HMVC 36E
180 9,068 6,446 1,104 1,25 – 7,066 8 10 ▶ SNW 136x6.7/16 AN 36 W 36 HMVC 36E
6 1 /2 180 8,255 4,327 1,104 1,219 – 7,066 8 6,8 SNW 3036x6.1/2 N 036 W 036 HMVC 36E
165,1 180 8,255 5,028 1,104 1,219 – 7,066 8 7,75 SNW 3136x6.1/2 N 036 W 036 HMVC 36E
180 9,068 5,028 1,104 1,25 – 7,066 8 9,3 ▶ SNW 36x6.1/2 AN 36 W 36 HMVC 36E
180 9,068 6,446 1,104 1,104 – 7,066 8 10 SNW 136x6.1/2 AN 36 W 36 HMVC 36E
6 13 /16 190 8,693 4,402 1,135 1,25 – 7,472 8 7,5 SNW 3038x6.13/16 N 038 W 038 HMVC 38E
173,038 190 9,474 5,251 1,135 1,281 – 7,472 8 10,5 SNW 38x6.13/16 AN 38 W 38 HMVC 38E
190 9,474 6,748 1,135 1,281 – 7,472 8 12,5 SNW 138x6.13/16 AN 38 W 38 HMVC 38E
6 7 /8 190 8,693 4,402 1,135 1,25 – 7,472 8 7,5 SNW 3038x6.7/8 N 038 W 038 HMVC 38E
174,625 190 9,474 5,251 1,135 1,281 – 7,472 8 10,5 SNW 38x6.7/8 AN 38 W 38 HMVC 38E
190 9,474 6,748 1,135 1,281 – 7,472 8 12,5 SNW 138x6.7/8 AN 38 W 38 HMVC 38E
6 15 /16 180 9,068 6,446 1,104 1,104 – 7,066 8 10 SNW 136x6.15/16 AN 36 W 36 HMVC 36E
176,213 190 8,693 4,402 1,135 1,25 – 7,472 8 7,5 ▶ SNW 3038x6.15/16 N 038 W 038 HMVC 38E
190 8,693 5,251 1,135 1,25 – 7,472 8 8,95 ▶ SNW 3138x6.15/16 N 038 W 038 HMVC 38E
190 9,474 5,251 1,135 1,281 – 7,472 8 10,5 ▶ SNW 38x6.15/16 AN 38 W 38 HMVC 38E
190 9,474 6,748 1,135 1,281 – 7,472 8 12,5 ▶ SNW 138x6.15/16 AN 38 W 38 HMVC 38E
7 190 8,693 4,402 1,135 1,25 – 7,472 8 7,5 ▶ SNW 3038x7 N 038 W 038 HMVC 38E
177,8 190 8,693 5,251 1,135 1,25 – 7,472 8 8,95 ▶ SNW 3138x7 N 038 W 038 HMVC 38E
190 9,474 5,251 1,135 1,281 – 7,472 8 10,5 ▶ SNW 38x7 AN 38 W 38 HMVC 38E
190 9,474 6,748 1,135 1,281 – 7,472 8 12,5 ▶ SNW 138x7 AN 38 W 38 HMVC 38E
7 1 /8 20 9,849 7,085 1,198 1,344 – 7,847 8 16 SNW 140x7.1/8 AN 40 W 40 HMVC 40E
180,975 200 9,443 4,74 1,198 1,313 – 7,847 8 8,85 SNW 3040x7.1/8 N 040 W 040 HMVC 40E
200 9,849 5,474 1,198 1,344 – 7,847 8 14 SNW 40x7.1/8 AN 40 W 40 HMVC 40E
7 3 /16 200 9,443 4,74 1,198 1,313 – 7,847 8 8,85 ▶ SNW 3040x7.3/16 N 040 W 040 HMVC 40E
182,563 200 9,443 5,474 1,198 1,313 – 7,847 8 13 ▶ SNW 3140x7.3/16 N 040 W 040 HMVC 40E
200 9,849 5,474 1,198 1,344 – 7,847 8 14 ▶ SNW 40x7.3/16 AN 40 W 40 HMVC 40E
200 9,849 7,085 1,198 1,344 – 7,847 8 16 ▶ SNW 140x7.3/16 AN 40 W 40 HMVC 40E
220 11,005 7,227 1,26 1,406 – 8,628 8 21 SNW 144x7.3/16 N 44 W 44 HMVC 44E
7 1 /4 20 9,849 7,085 1,198 1,344 – 7,847 8 16 SNW 140x7.1/4 AN 40 W 40 HMVC 40E
184,15 200 9,443 4,74 1,198 1,313 – 7,847 8 8,85 SNW 3040x7.1/4 N 040 W 040 HMVC 40E
200 9,849 5,474 1,198 1,344 – 7,847 8 14 SNW 40x7.1/4 AN 40 W 40 HMVC 40E
7 7 /16 200 9,443 4,74 1,198 1,313 – 7,847 8 8,85 SNW 3040x7.7/16 N 040 W 040 HMVC 40E
188,913 23.2
7 1 /2 220 11,005 5,891 1,26 1,406 – 8,628 8 14,5 SNW 44x7.1/2 N 44 W 44 HMVC 44E
190,5 220 11,005 7,227 1,26 1,406 – 8,628 8 21 SNW 144x7.1/2 N 44 W 44 HMVC 44E
7 13 /16 200 9,849 7,085 1,198 1,344 – 7,847 8 16 SNW 140x7.13/16 AN 40 W 40 HMVC 40E
198,438 220 10,255 5,12 1,26 1,375 – 8,628 8 11 SNW 3044x7.13/16 N 044 W 044 HMVC 44E
220 11,005 5,891 1,26 1,406 – 8,628 8 14,5 SNW 44x7.13/16 N 44 W 44 HMVC 44E
220 11,005 7,227 1,26 1,406 – 8,628 8 21 SNW 144x7.13/16 N 44 W 44 HMVC 44E
▶ Popular item
Product data online † skf.com/go/17000-23-2 1081
