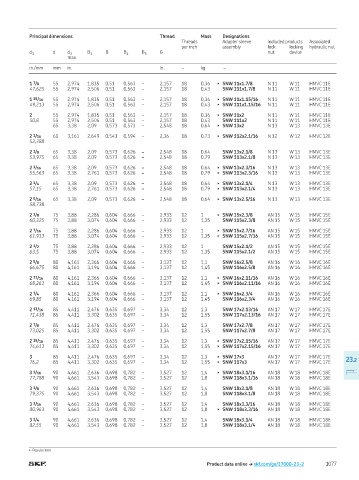

product table

Principal dimensions Thread Mass Designations
Threads Adapter sleeve Included products Associated
per inch assembly lock locking hydraulic nut
d 1 d d 3 B 1 B B 4 B 5 G nut device
max.

in./mm mm in. in. – kg –

1 7 /8 55 2,974 1,835 0,51 0,563 – 2,157 18 0,36 ▶ SNW 11x1.7/8 N 11 W 11 HMVC 11E
47,625 55 2,974 2,506 0,51 0,563 – 2,157 18 0,43 SNW 111x1.7/8 N 11 W 11 HMVC 11E

1 15 /16 55 2,974 1,835 0,51 0,563 – 2,157 18 0,36 ▶ SNW 11x1.15/16 N 11 W 11 HMVC 11E
49,213 55 2,974 2,506 0,51 0,563 – 2,157 18 0,43 ▶ SNW 111x1.15/16 N 11 W 11 HMVC 11E

2 55 2,974 1,835 0,51 0,563 – 2,157 18 0,36 ▶ SNW 11x2 N 11 W 11 HMVC 11E
50,8 55 2,974 2,506 0,51 0,563 – 2,157 18 0,43 SNW 111x2 N 11 W 11 HMVC 11E
65 3,38 2,09 0,573 0,573 – 2,548 18 0,64 ▶ SNW 13x2 N 13 W 13 HMVC 13E

2 1 /16 60 3,161 2,649 0,541 0,594 – 2,36 18 0,73 ▶ SNW 112x2.1/16 N 12 W 12 HMVC 12E
52,388

2 1 /8 65 3,38 2,09 0,573 0,626 – 2,548 18 0,64 SNW 13x2.1/8 N 13 W 13 HMVC 13E
53,975 65 3,38 2,09 0,573 0,626 – 2,548 18 0,79 SNW 113x2.1/8 N 13 W 13 HMVC 13E

2 3 /16 65 3,38 2,09 0,573 0,626 – 2,548 18 0,64 ▶ SNW 13x2.3/16 N 13 W 13 HMVC 13E
55,563 65 3,38 2,761 0,573 0,626 – 2,548 18 0,79 ▶ SNW 113x2.3/16 N 13 W 13 HMVC 13E

2 1 /4 65 3,38 2,09 0,573 0,626 – 2,548 18 0,64 ▶ SNW 13x2.1/4 N 13 W 13 HMVC 13E
57,15 65 3,38 2,761 0,573 0,626 – 2,548 18 0,79 ▶ SNW 113x2.1/4 N 13 W 13 HMVC 13E

2 5 /16 65 3,38 2,09 0,573 0,626 – 2,548 18 0,64 ▶ SNW 13x2.5/16 N 13 W 13 HMVC 13E
58,738

2 3 /8 75 3,88 2,286 0,604 0,666 – 2,933 12 1 ▶ SNW 15x2.3/8 AN 15 W 15 HMVC 15E
60,325 75 3,88 3,074 0,604 0,666 – 2,933 12 1,35 SNW 115x2.3/8 AN 15 W 15 HMVC 15E

2 7 /16 75 3,88 2,286 0,604 0,666 – 2,933 12 1 ▶ SNW 15x2.7/16 AN 15 W 15 HMVC 15E
61,913 75 3,88 3,074 0,604 0,666 – 2,933 12 1,35 ▶ SNW 115x2.7/16 AN 15 W 15 HMVC 15E

2 1 /2 75 3,88 2,286 0,604 0,666 – 2,933 12 1 SNW 15x2.1/2 AN 15 W 15 HMVC 15E
63,5 75 3,88 3,074 0,604 0,666 – 2,933 12 1,35 SNW 115x2.1/2 AN 15 W 15 HMVC 15E

2 5 /8 80 4,161 2,366 0,604 0,666 – 3,137 12 1,1 SNW 16x2.5/8 AN 16 W 16 HMVC 16E
66,675 80 4,161 3,194 0,604 0,666 – 3,137 12 1,45 SNW 116x2.5/8 AN 16 W 16 HMVC 16E

2 11 /16 80 4,161 2,366 0,604 0,666 – 3,137 12 1,1 ▶ SNW 16x2.11/16 AN 16 W 16 HMVC 16E
68,263 80 4,161 3,194 0,604 0,666 – 3,137 12 1,45 ▶ SNW 116x2.11/16 AN 16 W 16 HMVC 16E

2 3 /4 80 4,161 2,366 0,604 0,666 – 3,137 12 1,1 ▶ SNW 16x2.3/4 AN 16 W 16 HMVC 16E
69,85 80 4,161 3,194 0,604 0,666 – 3,137 12 1,45 SNW 116x2.3/4 AN 16 W 16 HMVC 16E

2 13 /16 85 4,411 2,476 0,635 0,697 – 3,34 12 1,3 SNW 17x2.13/16 AN 17 W 17 HMVC 17E
71,438 85 4,411 3,302 0,635 0,697 – 3,34 12 1,55 SNW 117x2.13/16 AN 17 W 17 HMVC 17E

2 7 /8 85 4,411 2,476 0,635 0,697 – 3,34 12 1,3 SNW 17x2.7/8 AN 17 W 17 HMVC 17E
73,025 85 4,411 3,302 0,635 0,697 – 3,34 12 1,55 SNW 117x2.7/8 AN 17 W 17 HMVC 17E

2 15 /16 85 4,411 2,476 0,635 0,697 – 3,34 12 1,3 ▶ SNW 17x2.15/16 AN 17 W 17 HMVC 17E
74,613 85 4,411 3,302 0,635 0,697 – 3,34 12 1,55 ▶ SNW 117x2.15/16 AN 17 W 17 HMVC 17E

3 85 4,411 2,476 0,635 0,697 – 3,34 12 1,3 ▶ SNW 17x3 AN 17 W 17 HMVC 17E
76,2 85 4,411 3,302 0,635 0,697 – 3,34 12 1,55 ▶ SNW 117x3 AN 17 W 17 HMVC 17E 23.2

3 1 /16 90 4,661 2,636 0,698 0,782 – 3,527 12 1,4 ▶ SNW 18x3.1/16 AN 18 W 18 HMVC 18E
77,788 90 4,661 3,543 0,698 0,782 – 3,527 12 1,8 SNW 118x3.1/16 AN 18 W 18 HMVC 18E

3 1 /8 90 4,661 2,636 0,698 0,782 – 3,527 12 1,4 SNW 18x3.1/8 AN 18 W 18 HMVC 18E
79,375 90 4,661 3,543 0,698 0,782 – 3,527 12 1,8 SNW 118x3.1/8 AN 18 W 18 HMVC 18E

3 3 /16 90 4,661 2,636 0,698 0,782 – 3,527 12 1,4 SNW 18x3.3/16 AN 18 W 18 HMVC 18E
80,963 90 4,661 3,543 0,698 0,782 – 3,527 12 1,8 ▶ SNW 118x3.3/16 AN 18 W 18 HMVC 18E

3 1 /4 90 4,661 2,636 0,698 0,782 – 3,527 12 1,4 SNW 18x3.1/4 AN 18 W 18 HMVC 18E
82,55 90 4,661 3,543 0,698 0,782 – 3,527 12 1,8 SNW 118x3.1/4 AN 18 W 18 HMVC 18E

▶ Popular item

Product data online † skf.com/go/17000-23-2 1077
