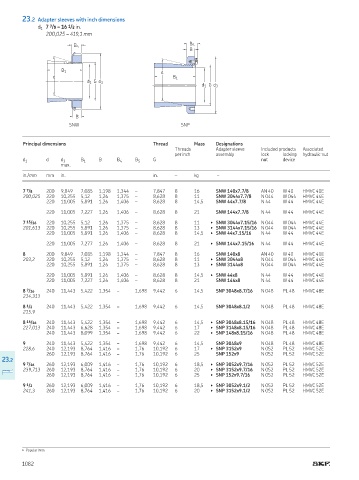

23.2 Adapter sleeves with inch dimensions
d 7 7 /8 – 16 1 /2 in
1
200,025 – 419,1 mm
B 5
B 4
B

B 1 d
d B 1
d 1 G d 3
d 1 G d 3

B
SNW SNP

Principal dimensions Thread Mass Designations
Threads Adapter sleeve Included products Associated
per inch assembly lock locking hydraulic nut
d 1 d d 3 B 1 B B 4 B 5 G nut device
max
in /mm mm in in – kg –

7 7 /8 200 9,849 7,085 1,198 1,344 – 7,847 8 16 SNW 140x7.7/8 AN 40 W 40 HMVC 40E
200,025 220 10,255 5,12 1,26 1,375 – 8,628 8 11 SNW 3044x7.7/8 N 044 W 044 HMVC 44E
220 11,005 5,891 1,26 1,406 – 8,628 8 14,5 SNW 44x7.7/8 N 44 W 44 HMVC 44E

220 11,005 7,227 1,26 1,406 – 8,628 8 21 SNW 144x7.7/8 N 44 W 44 HMVC 44E

7 15 /16 220 10,255 5,12 1,26 1,375 – 8,628 8 11 ▶ SNW 3044x7.15/16 N 044 W 044 HMVC 44E
201,613 220 10,255 5,891 1,26 1,375 – 8,628 8 13 ▶ SNW 3144x7.15/16 N 044 W 044 HMVC 44E
220 11,005 5,891 1,26 1,406 – 8,628 8 14,5 ▶ SNW 44x7.15/16 N 44 W 44 HMVC 44E

220 11,005 7,277 1,26 1,406 – 8,628 8 21 ▶ SNW 144x7.15/16 N 44 W 44 HMVC 44E

8 200 9,849 7,085 1,198 1,344 – 7,847 8 16 SNW 140x8 AN 40 W 40 HMVC 40E
203,2 220 10,255 5,12 1,26 1,375 – 8,628 8 11 ▶ SNW 3044x8 N 044 W 044 HMVC 44E
220 10,255 5,891 1,26 1,375 – 8,628 8 13 ▶ SNW 3144x8 N 044 W 044 HMVC 44E

220 11,005 5,891 1,26 1,406 – 8,628 8 14,5 ▶ SNW 44x8 N 44 W 44 HMVC 44E
220 11,005 7,227 1,26 1,406 – 8,628 8 21 SNW 144x8 N 44 W 44 HMVC 44E

8 7 /16 240 11,443 5,422 1,354 – 1,698 9,442 6 14,5 SNP 3048x8.7/16 N 048 PL 48 HMVC 48E
214,313

8 1 /2 240 11,443 5,422 1,354 – 1,698 9,442 6 14,5 SNP 3048x8.1/2 N 048 PL 48 HMVC 48E
215,9

8 15 /16 240 11,443 5,422 1,354 – 1,698 9,442 6 14,5 ▶ SNP 3048x8.15/16 N 048 PL 48 HMVC 48E
227,013 240 11,443 6,628 1,354 – 1,698 9,442 6 17 ▶ SNP 3148x8.15/16 N 048 PL 48 HMVC 48E
240 11,443 8,099 1,354 – 1,698 9,442 6 22 ▶ SNP 148x8.15/16 N 048 PL 48 HMVC 48E

9 240 11,443 5,422 1,354 – 1,698 9,442 6 14,5 SNP 3048x9 N 048 PL 48 HMVC 48E
228,6 240 12,193 8,764 1,416 – 1,76 10,192 6 17 ▶ SNP 3152x9 N 052 PL 52 HMVC 52E
260 12,193 8,764 1,416 – 1,76 10,192 6 25 SNP 152x9 N 052 PL 52 HMVC 52E
23.2
9 7 /16 260 12,193 6,009 1,416 – 1,76 10,192 6 18,5 ▶ SNP 3052x9.7/16 N 052 PL 52 HMVC 52E
239,713 260 12,193 8,764 1,416 – 1,76 10,192 6 20 ▶ SNP 3152x9.7/16 N 052 PL 52 HMVC 52E
260 12,193 8,764 1,416 – 1,76 10,192 6 25 ▶ SNP 152x9.7/16 N 052 PL 52 HMVC 52E

9 1 /2 260 12,193 6,009 1,416 – 1,76 10,192 6 18,5 ▶ SNP 3052x9.1/2 N 052 PL 52 HMVC 52E
241,3 260 12,193 8,764 1,416 – 1,76 10,192 6 20 ▶ SNP 3152x9.1/2 N 052 PL 52 HMVC 52E

▶ Popular item
