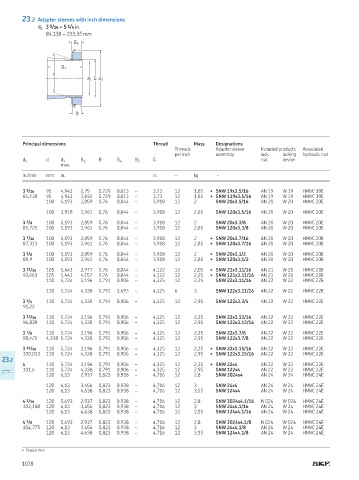

23.2 Adapter sleeves with inch dimensions
d 3 5 /16 – 5 1 /4 in
1
84,138 – 133,35 mm
B 4

B 1
d
d 1 G d 3

B

Principal dimensions Thread Mass Designations
Threads Adapter sleeve Included products Associated
per inch assembly lock locking hydraulic nut
d 1 d d 3 B 1 B B 4 B 5 G nut device
max
in /mm mm in in – kg –

3 5 /16 95 4,943 2,75 0,729 0,813 – 3,73 12 1,85 ▶ SNW 19x3.5/16 AN 19 W 19 HMVC 19E
84,138 95 4,943 3,692 0,729 0,813 – 3,73 12 1,85 ▶ SNW 119x3.5/16 AN 19 W 19 HMVC 19E
100 5,193 2,859 0,76 0,844 – 3,918 12 2 SNW 20x3.5/16 AN 20 W 20 HMVC 20E

100 3,918 3,961 0,76 0,844 – 3,918 12 2,85 SNW 120x3.5/16 AN 20 W 20 HMVC 20E

3 3 /8 100 5,193 2,859 0,76 0,844 – 3,918 12 2 SNW 20x3.3/8 AN 20 W 20 HMVC 20E
85,725 100 5,193 3,961 0,76 0,844 – 3,918 12 2,85 SNW 120x3.3/8 AN 20 W 20 HMVC 20E

3 7 /16 100 5,193 2,859 0,76 0,844 – 3,918 12 2 ▶ SNW 20x3.7/16 AN 20 W 20 HMVC 20E
87,313 100 5,193 3,961 0,76 0,844 – 3,918 12 2,85 ▶ SNW 120x3.7/16 AN 20 W 20 HMVC 20E

3 1 /2 100 5,193 2,859 0,76 0,844 – 3,918 12 2 ▶ SNW 20x3.1/2 AN 20 W 20 HMVC 20E
88,9 100 5,193 3,961 0,76 0,844 – 3,918 12 2,85 ▶ SNW 120x3.1/2 AN 20 W 20 HMVC 20E

3 11 /16 105 5,443 2,977 0,76 0,844 – 4,122 12 2,05 ▶ SNW 21x3.11/16 AN 21 W 21 HMVC 21E
93,663 105 5,443 4,157 0,76 0,844 – 4,122 12 2,25 ▶ SNW 121x3.11/16 AN 21 W 21 HMVC 21E
110 5,724 3,196 0,791 0,906 – 4,325 12 2,25 SNW 22x3.11/16 AN 22 W 22 HMVC 22E

110 5,724 4,338 0,791 3,693 – 4,325 6 3 SNW 122x3.11/16 AN 22 W 22 HMVC 22E
3 3 /4 110 5,724 4,338 0,791 0,906 – 4,325 12 2,95 SNW 122x3.3/4 AN 22 W 22 HMVC 22E
95,25

3 13 /16 110 5,724 3,196 0,791 0,906 – 4,325 12 2,25 SNW 22x3.13/16 AN 22 W 22 HMVC 22E
96,838 110 5,724 4,338 0,791 0,906 – 4,325 12 2,95 SNW 122x3.13/16 AN 22 W 22 HMVC 22E

3 7 /8 110 5,724 3,196 0,791 0,906 – 4,325 12 2,25 SNW 22x3.7/8 AN 22 W 22 HMVC 22E
98,425 4,338 5,724 4,338 0,791 0,906 – 4,325 12 2,95 SNW 122x3.7/8 AN 22 W 22 HMVC 22E

3 15 /16 110 5,724 3,196 0,791 0,906 – 4,325 12 2,25 ▶ SNW 22x3.15/16 AN 22 W 22 HMVC 22E
100,013 110 5,724 4,338 0,791 0,906 – 4,325 12 2,95 ▶ SNW 122x3.15/16 AN 22 W 22 HMVC 22E
23.2
4 110 5,724 3,196 0,791 0,906 – 4,325 12 2,25 ▶ SNW 22x4 AN 22 W 22 HMVC 22E
101,6 110 5,724 4,338 0,791 0,906 – 4,325 12 2,95 SNW 122x4 AN 22 W 22 HMVC 22E
120 6,13 2,937 0,823 0,938 – 4,716 12 2,8 SNW 3024x4 AN 24 W 24 HMVC 24E

120 6,13 3,456 0,823 0,938 – 4,716 12 3 SNW 24x4 AN 24 W 24 HMVC 24E
120 6,13 4,638 0,823 0,938 – 4,716 12 3,55 SNW 124x4 AN 24 W 24 HMVC 24E

4 1 /16 120 5,693 2,937 0,823 0,938 – 4,716 12 2,8 SNW 3024x4.1/16 N 024 W 024 HMVC 24E
103,188 120 6,13 3,456 0,823 0,938 – 4,716 12 3 SNW 24x4.1/16 AN 24 W 24 HMVC 24E
120 6,13 4,638 0,823 0,938 – 4,716 12 3,55 SNW 124x4.1/16 AN 24 W 24 HMVC 24E

4 1 /8 120 5,693 2,937 0,823 0,938 – 4,716 12 2,8 SNW 3024x4.1/8 N 024 W 024 HMVC 24E
104,775 120 6,13 3,456 0,823 0,938 – 4,716 12 3 SNW 24x4.1/8 AN 24 W 24 HMVC 24E
120 6,13 4,638 0,823 0,938 – 4,716 12 3,55 SNW 124x4.1/8 AN 24 W 24 HMVC 24E

▶ Popular item
1078
