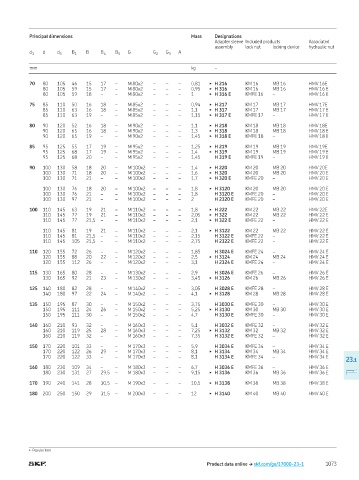

Page 1075 - Rollingbearings

Principal dimensions Mass Designations
Adapter sleeve Included products Associated
assembly lock nut locking device hydraulic nut
d 1 d d 3 B 1 B B 4 B 5 G G 2 G 3 A

mm kg –

70 80 105 46 15 17 – M 80x2 – – – 0,81 ▶ H 216 KM 16 MB 16 HMV 16E
80 105 59 15 17 – M 80x2 – – – 0,95 ▶ H 316 KM 16 MB 16 HMV 16 E
80 105 59 18 – – M 80x2 – – – 1 ▶ H 316 E KMFE 16 – HMV 16 E

75 85 110 50 16 18 – M 85x2 – – – 0,94 ▶ H 217 KM 17 MB 17 HMV 17E
85 110 63 16 18 – M 85x2 – – – 1,1 ▶ H 317 KM 17 MB 17 HMV 17 E
85 110 63 19 – – M 85x2 – – – 1,15 ▶ H 317 E KMFE 17 – HMV 17 E

80 90 120 52 16 18 – M 90x2 – – – 1,1 ▶ H 218 KM 18 MB 18 HMV 18E
90 120 65 16 18 – M 90x2 – – – 1,3 ▶ H 318 KM 18 MB 18 HMV 18 E
90 120 65 19 – – M 90x2 – – – 1,45 ▶ H 318 E KMFE 18 – HMV 18 E

85 95 125 55 17 19 – M 95x2 – – – 1,25 ▶ H 219 KM 19 MB 19 HMV 19E
95 125 68 17 19 – M 95x2 – – – 1,4 ▶ H 319 KM 19 MB 19 HMV 19 E
95 125 68 20 – – M 95x2 – – – 1,45 H 319 E KMFE 19 – HMV 19 E

90 100 130 58 18 20 – M 100x2 – – – 1,4 ▶ H 220 KM 20 MB 20 HMV 20E
100 130 71 18 20 – M 100x2 – – – 1,6 ▶ H 320 KM 20 MB 20 HMV 20 E
100 130 71 21 – – M 100x2 – – – 1,7 ▶ H 320 E KMFE 20 – HMV 20 E

100 130 76 18 20 – M 100x2 – – – 1,8 ▶ H 3120 KM 20 MB 20 HMV 20 E
100 130 76 21 – – M 100x2 – – – 1,8 H 3120 E KMFE 20 – HMV 20 E
100 130 97 21 – – M 100x2 – – – 2 H 2320 E KMFE 20 – HMV 20 E

100 110 145 63 19 21 – M 110x2 – – – 1,8 ▶ H 222 KM 22 MB 22 HMV 22E
110 145 77 19 21 – M 110x2 – – – 2,05 ▶ H 322 KM 22 MB 22 HMV 22 E
110 145 77 21,5 – – M 110x2 – – – 2,1 ▶ H 322 E KMFE 22 – HMV 22 E

110 145 81 19 21 – M 110x2 – – – 2,1 ▶ H 3122 KM 22 MB 22 HMV 22 E
110 145 81 21,5 – – M 110x2 – – – 2,15 H 3122 E KMFE 22 – HMV 22 E
110 145 105 21,5 – – M 110x2 – – – 2,75 H 2322 E KMFE 22 – HMV 22 E

110 120 155 72 26 – – M 120x2 – – – 1,85 H 3024 E KMFE 24 – HMV 24 E
120 155 88 20 22 – M 120x2 – – – 2,5 ▶ H 3124 KM 24 MB 24 HMV 24 E
120 155 112 26 – – M 120x2 – – – 3,1 H 2324 E KMFE 24 – HMV 24 E

115 130 165 80 28 – – M 130x2 – – – 2,9 H 3026 E KMFE 26 – HMV 26 E
130 165 92 21 23 – M 130x2 – – – 3,45 ▶ H 3126 KM 26 MB 26 HMV 26 E

125 140 180 82 28 – – M 140x2 – – – 3,05 H 3028 E KMFE 28 – HMV 28 E
140 180 97 22 24 – M 140x2 – – – 4,1 ▶ H 3128 KM 28 MB 28 HMV 28 E

135 150 195 87 30 – – M 150x2 – – – 3,75 H 3030 E KMFE 30 – HMV 30 E
150 195 111 24 26 – M 150x2 – – – 5,25 ▶ H 3130 KM 30 MB 30 HMV 30 E
150 195 111 30 – – M 150x2 – – – 4,7 H 3130 E KMFE 30 – HMV 30 E

140 160 210 93 32 – – M 160x3 – – – 5,1 H 3032 E KMFE 32 – HMV 32 E
160 210 119 25 28 – M 160x3 – – – 7,25 ▶ H 3132 KM 32 MB 32 HMV 32 E
160 210 119 32 – – M 160x3 – – – 7,35 H 3132 E KMFE 32 – HMV 32 E

150 170 220 101 33 – – M 170x3 – – – 5,9 H 3034 E KMFE 34 – HMV 34 E
170 220 122 26 29 – M 170x3 – – – 8,1 ▶ H 3134 KM 34 MB 34 HMV 34 E
170 220 122 33 – – M 170x3 – – – 8,1 H 3134 E KMFE 34 – HMV 34 E
23.1
160 180 230 109 34 – – M 180x3 – – – 6,7 H 3036 E KMFE 36 – HMV 36 E
180 230 131 27 29,5 – M 180x3 – – – 9,15 ▶ H 3136 KM 36 MB 36 HMV 36 E

170 190 240 141 28 30,5 – M 190x3 – – – 10,5 ▶ H 3138 KM 38 MB 38 HMV 38 E

180 200 250 150 29 31,5 – M 200x3 – – – 12 ▶ H 3140 KM 40 MB 40 HMV 40 E

▶ Popular item

Product data online † skf.com/go/17000-23-1 1073
