P. 1074
product table Product tables product tables

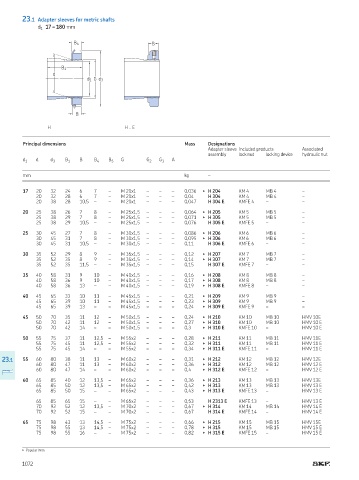

23.1 Adapter sleeves for metric shafts
d 17 – 180 mm
1
B 4 B
B 1
d
d 1 G d 3
B
H H .. E
Principal dimensions Mass Designations
Adapter sleeve Included products Associated
assembly lock nut locking device hydraulic nut
d 1 d d 3 B 1 B B 4 B 5 G G 2 G 3 A
mm kg –
17 20 32 24 6 7 – M 20x1 – – – 0,036 ▶ H 204 KM 4 MB 4 –
20 32 28 6 7 – M 20x1 – – – 0,04 H 304 KM 4 MB 4 –
20 38 28 10,5 – – M 20x1 – – – 0,047 H 304 E KMFE 4 – –
20 25 38 26 7 8 – M 25x1,5 – – – 0,064 ▶ H 205 KM 5 MB 5 –
25 38 29 7 8 – M 25x1,5 – – – 0,071 ▶ H 305 KM 5 MB 5 –
25 38 29 10,5 – – M 25x1,5 – – – 0,076 H 305 E KMFE 5 – –
25 30 45 27 7 8 – M 30x1,5 – – – 0,086 ▶ H 206 KM 6 MB 6 –
30 45 31 7 8 – M 30x1,5 – – – 0,095 ▶ H 306 KM 6 MB 6 –
30 45 31 10,5 – – M 30x1,5 – – – 0,11 H 306 E KMFE 6 – –
30 35 52 29 8 9 – M 35x1,5 – – – 0,12 ▶ H 207 KM 7 MB 7 –
35 52 35 8 9 – M 35x1,5 – – – 0,14 ▶ H 307 KM 7 MB 7 –
35 52 35 11,5 – – M 35x1,5 – – – 0,15 H 307 E KMFE 7 – –
35 40 58 31 9 10 – M 40x1,5 – – – 0,16 ▶ H 208 KM 8 MB 8 –
40 58 36 9 10 – M 40x1,5 – – – 0,17 ▶ H 308 KM 8 MB 8 –
40 58 36 13 – – M 40x1,5 – – – 0,19 ▶ H 308 E KMFE 8 – –
40 45 65 33 10 11 – M 45x1,5 – – – 0,21 ▶ H 209 KM 9 MB 9 –
45 65 39 10 11 – M 45x1,5 – – – 0,23 ▶ H 309 KM 9 MB 9 –
45 65 39 13 – – M 45x1,5 – – – 0,24 ▶ H 309 E KMFE 9 – –
45 50 70 35 11 12 – M 50x1,5 – – – 0,24 ▶ H 210 KM 10 MB 10 HMV 10E
50 70 42 11 12 – M 50x1,5 – – – 0,27 ▶ H 310 KM 10 MB 10 HMV 10 E
50 70 42 14 – – M 50x1,5 – – – 0,3 ▶ H 310 E KMFE 10 – HMV 10 E
50 55 75 37 11 12,5 – M 55x2 – – – 0,28 ▶ H 211 KM 11 MB 11 HMV 11E
55 75 45 11 12,5 – M 55x2 – – – 0,32 ▶ H 311 KM 11 MB 11 HMV 11 E
55 75 45 14 – – M 55x2 – – – 0,34 ▶ H 311 E KMFE 11 – HMV 11 E
23.1 55 60 80 38 11 13 – M 60x2 – – – 0,31 ▶ H 212 KM 12 MB 12 HMV 12E
60 80 47 11 13 – M 60x2 – – – 0,36 ▶ H 312 KM 12 MB 12 HMV 12 E
60 80 47 14 – – M 60x2 – – – 0,4 ▶ H 312 E KMFE 12 – HMV 12 E
60 65 85 40 12 13,5 – M 65x2 – – – 0,36 ▶ H 213 KM 13 MB 13 HMV 13E
65 85 50 12 13,5 – M 65x2 – – – 0,42 ▶ H 313 KM 13 MB 13 HMV 13 E
65 85 50 15 – – M 65x2 – – – 0,43 ▶ H 313 E KMFE 13 – HMV 13 E
65 85 65 15 – – M 65x2 – – – 0,53 H 2313 E KMFE 13 – HMV 13 E
70 92 52 12 13,5 – M 70x2 – – – 0,67 ▶ H 314 KM 14 MB 14 HMV 14 E
70 92 52 15 – – M 70x2 – – – 0,67 H 314 E KMFE 14 – HMV 14 E
65 75 98 43 13 14,5 – M 75x2 – – – 0,66 ▶ H 215 KM 15 MB 15 HMV 15E
75 98 55 13 14,5 – M 75x2 – – – 0,78 ▶ H 315 KM 15 MB 15 HMV 15 E
75 98 55 16 – – M 75x2 – – – 0,82 ▶ H 315 E KMFE 15 – HMV 15 E
▶ Popular item
