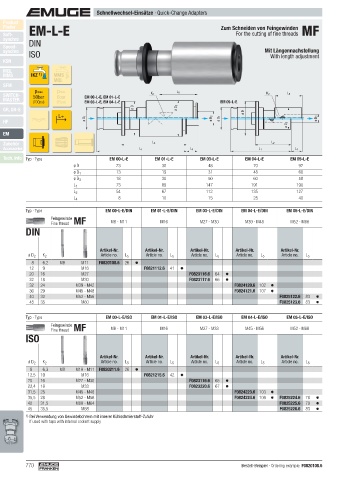

Schnellwechsel-Einsätze · Quick-Change Adapters
Product
For the cutting of fi ne threads MF
Finder EM-L-E Zum Schneiden von Feingewinden
Soft-
synchro
Speed- DIN
synchro Mit Längennachstellung
ISO With length adjustment
KSN
MQL
MMS IKZ 1) MMS
MQL
SFM
pmax pmax L 5
SWITCH- 50bar 6bar EM 00-L-E, EM 01-L-E K 2 K 2 L 5
MASTER (700psi) (85psi) EM 03-L-E, EM 04-L-E EM 05-L-E
GR, GR-S ø D ø D 3 ø D
L+
HF ø D 1 ø D 2 ø D 1 ø D 2
ø D 3
EM
Zubehör L 2 L 2
Accessories L 1 L 4 L 1 L 4
Tech. Info Typ · Type EM 00-L-E EM 01-L-E EM 03-L-E EM 04-L-E EM 05-L-E
ø D 23 30 48 70 92
ø D 1 13 19 31 48 60
ø D 3 18 30 50 60 58
L 1 73 89 147 191 190
L 2 54 67 112 135 127
L 4 8 10 15 25 40

Typ · Type EM 00-L-E/DIN EM 01-L-E/DIN EM 03-L-E/DIN EM 04-L-E/DIN EM 05-L-E/DIN
Feingewinde
Fine thread MF M8 - M11 M16 M27 - M30 M39 - M48 M52 - M60
DIN

Artikel-Nr. Artikel-Nr. Artikel-Nr. Artikel-Nr. Artikel-Nr.
ø D 2 K 2 Article no. L 5 Article no. L 5 Article no. L 5 Article no. L 5 Article no. L 5
8 6,2 M8 M11 F0820108.6 26
12 9 M16 F0821112.6 41
20 16 M27 F0823116.6 64
22 18 M30 F0823117.6 66
32 24 M39 - M42 F0824120.6 102
36 29 M45 - M48 F0824121.6 107
40 32 M52 - M56 F0825122.6 83
45 35 M60 F0825123.6 83

Typ · Type EM 00-L-E/ISO EM 01-L-E/ISO EM 03-L-E/ISO EM 04-L-E/ISO EM 05-L-E/ISO
Feingewinde
Fine thread MF M8 - M11 M16 M27 - M33 M45 - M56 M52 - M68
ISO

Artikel-Nr. Artikel-Nr. Artikel-Nr. Artikel-Nr. Artikel-Nr.
ø D 2 K 2 Article no. L 5 Article no. L 5 Article no. L 5 Article no. L 5 Article no. L 5
8 6,3 M8 M10 - M11 F0820211.6 26
12,5 10 M16 F0821215.6 42
20 16 M27 - M30 F0823116.6 65
22,4 18 M33 F0823220.6 67
31,5 25 M45 - M48 F0824223.6 103
35,5 28 M52 - M56 F0824224.6 106 F0825224.6 76
40 31,5 M60 - M64 F0825225.6 79
45 35,5 M68 F0825226.6 83
1) Bei Verwendung von Gewindebohrern mit innerer Kühlschmierstoff-Zufuhr
If used with taps with internal coolant supply

770 Bestell-Beispiel · Ordering example: F0820108.6
