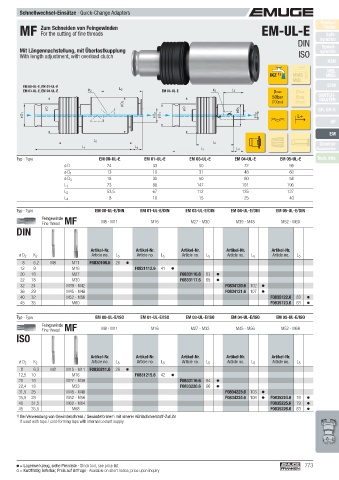

Page 773 - EMUGE

Schnellwechsel-Einsätze · Quick-Change Adapters
Product
Zum Schneiden von Feingewinden EM-UL-E Finder
MF For the cutting of fi ne threads Soft-
DIN synchro
Speed-
Mit Längennachstellung, mit Überlastkupplung synchro
With length adjustment, with overload clutch ISO
KSN
MQL
IKZ 1) MMS MMS
MQL
EM 00-UL-E, EM 01-UL-E SFM
EM 03-UL-E, EM 04-UL-E K 2 L 5 EM 05-UL-E K 2 L 5 pmax pmax
50bar 6bar SWITCH-
MASTER
ø D 3 (700psi) (85psi)
ø D ø D ø D 3 GR, GR-S
ø D 1 ø D 2 ø D 1 ø D 2 L+
HF

EM
L 2
L 2 Zubehör
L 1 L 4
L 1 L 4 Accessories
Typ · Type EM 00-UL-E EM 01-UL-E EM 03-UL-E EM 04-UL-E EM 05-UL-E Tech. Info
ø D 24 33 50 72 95
ø D 1 13 19 31 48 60
ø D 3 18 30 50 60 58
L 1 73 89 147 191 190
L 2 53,5 67 112 135 127
L 4 8 10 15 25 40

Typ · Type EM 00-UL-E/DIN EM 01-UL-E/DIN EM 03-UL-E/DIN EM 04-UL-E/DIN EM 05-UL-E/DIN
Feingewinde
Fine thread MF M8 - M11 M16 M27 - M30 M39 - M48 M52 - M60
DIN

Artikel-Nr. Artikel-Nr. Artikel-Nr. Artikel-Nr. Artikel-Nr.
ø D 2 K 2 Article no. L 5 Article no. L 5 Article no. L 5 Article no. L 5 Article no. L 5
8 6,2 M8 M11 F0830108.6 26
12 9 M16 F0831112.6 41
20 16 M27 F0833116.6 63
22 18 M30 F0833117.6 65
32 24 M39 - M42 F0834120.6 102
36 29 M45 - M48 F0834121.6 107
40 32 M52 - M56 F0835122.6 83
45 35 M60 F0835123.6 83

Typ · Type EM 00-UL-E/ISO EM 01-UL-E/ISO EM 03-UL-E/ISO EM 04-UL-E/ISO EM 05-UL-E/ISO
Feingewinde
Fine thread MF M8 - M11 M16 M27 - M33 M45 - M56 M52 - M68
ISO

Artikel-Nr. Artikel-Nr. Artikel-Nr. Artikel-Nr. Artikel-Nr.
ø D 2 K 2 Article no. L 5 Article no. L 5 Article no. L 5 Article no. L 5 Article no. L 5
8 6,3 M8 M10 - M11 F0830211.6 26
12,5 10 M16 F0831215.6 42
20 16 M27 - M30 F0833116.6 64
22,4 18 M33 F0833220.6 66
31,5 25 M45 - M48 F0834223.6 103
35,5 28 M52 - M56 F0834224.6 106 F0835224.6 76
40 31,5 M60 - M64 F0835225.6 79
45 35,5 M68 F0835226.6 83
1) Bei Verwendung von Gewindebohrern / Gewindeformern mit innerer Kühlschmierstoff-Zufuhr
If used with taps / cold-forming taps with internal coolant supply

= Lagerwerkzeug, siehe Preisliste · Stock tool, see price list 773
= Kurzfristig lieferbar, Preis auf Anfrage · Available on short notice, price upon inquiry
