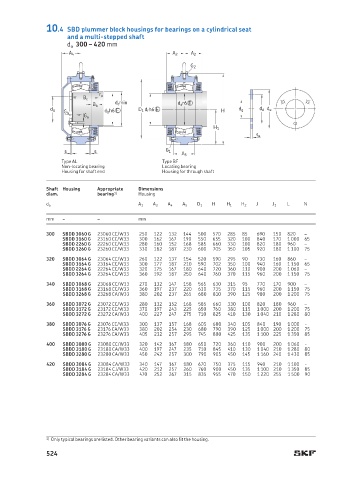

10.4 SBD plummer block housings for bearings on a cylindrical seat
and a multi-stepped shaft
d a 300 – 420 mm
A 4 A 2 A 2
G 2

r a
B c
d c m i n d a r6 E
B b
d d d b h6 E D 1 d f h6 E H d g d d d e
G h
G a
H 1
s a
s s G 1
A 5
Type AL Type BF
Non-locating bearing Locating bearing
Housing for shaft end Housing for through shaft
Shaft Housing Appropriate Dimensions
diam. bearing 1) Housing
H J L N
d a A 1 A 2 A 4 A 5 D 1 H 1 H 2 J 1
mm – – mm
300 SBDD 3060 G 23060 CC/W33 250 122 132 144 500 570 285 85 690 150 820 –
SBDD 3160 G 23160 CC/W33 300 162 167 190 550 655 320 100 840 170 1 000 65
SBDD 2260 G 22260 CC/W33 280 160 152 168 585 660 330 100 820 180 960 –
SBDD 3260 G 23260 CC/W33 330 182 187 230 600 705 350 105 920 180 1 100 75
320 SBDD 3064 G 23064 CC/W33 260 122 137 154 520 590 295 90 730 160 860 –
SBDD 3164 G 23164 CC/W33 300 177 187 210 590 702 350 100 940 160 1 150 65
SBDD 2264 G 22264 CC/W33 320 175 167 180 640 720 360 110 900 200 1 060 –
SBDD 3264 G 23264 CC/W33 360 192 187 250 640 760 370 115 960 200 1 150 75
340 SBDD 3068 G 23068 CC/W33 270 132 147 158 565 630 315 95 770 170 900 –
SBDD 3168 G 23168 CC/W33 360 197 237 220 630 735 370 115 960 200 1 150 75
SBDD 3268 G 23268 CA/W33 380 202 237 265 680 810 390 125 980 200 1 200 75
360 SBDD 3072 G 23072 CC/W33 280 132 152 168 585 660 330 100 820 180 960 –
SBDD 3172 G 23172 CC/W33 370 197 243 225 650 760 380 115 1 000 200 1 200 75
SBDD 3272 G 23272 CA/W33 400 227 247 275 710 825 410 130 1 040 210 1 280 80
380 SBDD 3076 G 23076 CC/W33 300 137 157 168 605 680 340 105 840 190 1 000 -
SBDD 3176 G 23176 CA/W33 380 202 254 230 680 790 390 125 1 000 200 1 200 75
SBDD 3276 G 23276 CA/W33 405 232 257 295 745 880 425 135 1 100 225 1 350 85
400 SBDD 3080 G 23080 CC/W33 320 142 167 180 650 720 360 110 900 200 1 060 -
SBDD 3180 G 23180 CA/W33 400 197 247 235 710 845 410 130 1 040 210 1 280 80
SBDD 3280 G 23280 CA/W33 450 242 257 300 790 905 450 145 1 160 240 1 430 85
420 SBDD 3084 G 23084 CA/W33 340 147 167 180 670 750 375 115 940 210 1 100 -
SBDD 3184 G 23184 CJ/W33 420 212 257 260 760 900 450 135 1 100 210 1 350 85
SBDD 3284 G 23284 CA/W33 470 252 267 315 835 955 470 150 1 220 255 1 500 90

1) Only typical bearings are listed. Other bearing variants can also fit the housing.
