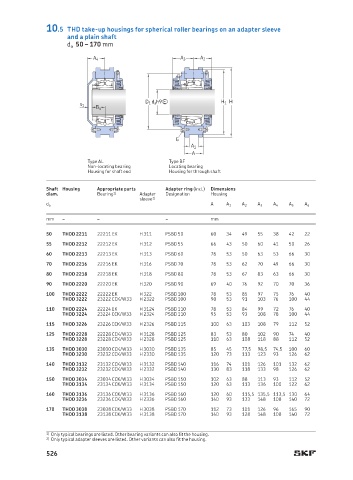

10.5 THD take-up housings for spherical roller bearings on an adapter sleeve
and a plain shaft
d a 50 – 170 mm
A 4 A 3 A 2

D 1 d a h9 E H 1 H
s 1
B a

G
A 1
A
Type AL Type BF
Non-locating bearing Locating bearing
Housing for shaft end Housing for through shaft
Shaft Housing Appropriate parts Adapter ring (incl.) Dimensions
diam. Bearing 1) Adapter Designation Housing
sleeve 2)
A
d a A 1 A 2 A 3 A 4 A 5 A 6
mm – – – mm
50 THDD 2211 22211 EK H 311 PSBD 50 60 34 49 55 38 42 22
55 THDD 2212 22212 EK H 312 PSBD 55 66 43 50 60 41 50 26
60 THDD 2213 22213 EK H 313 PSBD 60 78 53 50 63 53 66 30
70 THDD 2216 22216 EK H 316 PSBD 70 78 53 62 70 49 66 30
80 THDD 2218 22218 EK H 318 PSBD 80 78 53 67 83 63 66 30
90 THDD 2220 22220 EK H 320 PSBD 90 69 40 76 92 70 70 36
100 THDD 2222 22222 EK H 322 PSBD 100 78 53 85 97 75 76 40
THDD 3222 23222 CCK/W33 H 2322 PSBD 100 90 53 91 103 76 100 44
110 THDD 2224 22224 EK H 3124 PSBD 110 78 53 84 99 72 76 40
THDD 3224 23224 CCK/W33 H 2324 PSBD 110 95 53 93 108 78 100 44
115 THDD 3226 23226 CCK/W33 H 2326 PSBD 115 100 63 103 108 79 112 52
125 THDD 2228 22228 CCK/W33 H 3128 PSBD 125 83 53 80 102 90 74 40
THDD 3228 23228 CCK/W33 H 2328 PSBD 125 110 63 108 118 88 112 52
135 THDD 3030 23030 CCK/W33 H 3030 PSBD 135 85 45 77,5 98,5 74,5 100 60
THDD 3230 23232 CCK/W33 H 2330 PSBD 135 120 73 113 123 93 126 62
140 THDD 3132 23132 CCK/W33 H 3132 PSBD 140 116 74 101 126 101 132 62
THDD 3232 23232 CCK/W33 H 2332 PSBD 140 130 83 118 133 98 126 62
150 THDD 3034 23034 CCK/W33 H 3034 PSBD 150 102 63 88 113 93 112 52
THDD 3134 23134 CCK/W33 H 3134 PSBD 150 120 63 113 136 100 122 62
160 THDD 3136 23136 CCK/W33 H 3136 PSBD 160 120 60 115,5 135,5 113,5 130 64
THDD 3236 23236 CCK/W33 H 2336 PSBD 160 140 93 133 148 108 140 72
170 THDD 3038 23038 CCK/W33 H 3038 PSBD 170 112 73 101 126 96 165 90
THDD 3138 23138 CCK/W33 H 3138 PSBD 170 140 93 128 148 108 140 72

1) Only typical bearings are listed. Other bearing variants can also fit the housing.
2) Only typical adapter sleeves are listed. Other variants can also fit the housing.
