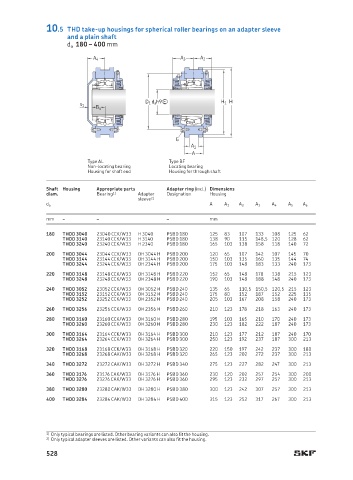

10.5 THD take-up housings for spherical roller bearings on an adapter sleeve
and a plain shaft
d a 180 – 400 mm
A 4 A 3 A 2

D 1 d a h9 E H 1 H
s 1
B a

G
A 1
A
Type AL Type BF
Non-locating bearing Locating bearing
Housing for shaft end Housing for through shaft
Shaft Housing Appropriate parts Adapter ring (incl.) Dimensions
diam. Bearing 1) Adapter Designation Housing
sleeve 2)
A
d a A 1 A 2 A 3 A 4 A 5 A 6
mm – – – mm
180 THDD 3040 23040 CCK/W33 H 3 040 PSBD 180 125 83 107 133 108 125 62
THDD 3140 23140 CCK/W33 H 3140 PSBD 180 138 90 115 148,5 120 128 62
THDD 3240 23240 CCK/W33 H 2340 PSBD 180 165 103 138 158 118 140 72
200 THDD 3044 23044 CCK/W33 OH 3044 H PSBD 200 120 65 107 142 107 145 70
THDD 3144 23144 CCK/W33 OH 3144 H PSBD 200 150 103 135 160 135 144 74
THDD 3244 23244 CCK/W33 OH 2344 H PSBD 200 175 103 148 183 133 240 173
220 THDD 3148 23148 CCK/W33 OH 3148 H PSBD 220 152 65 148 178 138 215 123
THDD 3248 23248 CCK/W33 OH 2348 H PSBD 220 190 103 148 188 148 240 173
240 THDD 3052 23052 CCK/W33 OH 3052 H PSBD 240 135 65 110,5 150,5 120,5 215 123
THDD 3152 23152 CCK/W33 OH 3152 H PSBD 240 175 80 152 187 152 225 135
THDD 3252 23252 CCK/W33 OH 2352 H PSBD 240 205 103 167 208 158 240 173
260 THDD 3256 23256 CCK/W33 OH 2356 H PSBD 260 210 123 178 218 163 240 173
280 THDD 3160 23160 CCK/W33 OH 3160 H PSBD 280 195 103 165 210 170 240 173
THDD 3260 23260 CCK/W33 OH 3260 H PSBD 280 230 123 182 222 187 240 173
300 THDD 3164 23164 CCK/W33 OH 3164 H PSBD 300 210 123 177 212 187 240 170
THDD 3264 23264 CCK/W33 OH 3264 H PSBD 300 250 123 192 237 187 300 213
320 THDD 3168 23168 CCK/W33 OH 3168 H PSBD 320 220 150 197 242 237 300 180
THDD 3268 23268 CAK/W33 OH 3268 H PSBD 320 265 123 202 272 237 300 213
340 THDD 3272 23272 CAK/W33 OH 3272 H PSBD 340 275 123 227 282 247 300 213
360 THDD 3176 23176 CAK/W33 OH 3176 H PSBD 360 230 120 202 257 254 300 200
THDD 3276 23276 CAK/W33 OH 3276 H PSBD 360 295 123 232 297 257 300 213
380 THDD 3280 23280 CAK/W33 OH 3280 H PSBD 380 300 123 242 307 257 300 213
400 THDD 3284 23284 CAK/W33 OH 3284 H PSBD 400 315 123 252 317 267 300 213

1) Only typical bearings are listed. Other bearing variants can also fit the housing.
2) Only typical adapter sleeves are listed. Other variants can also fit the housing.
