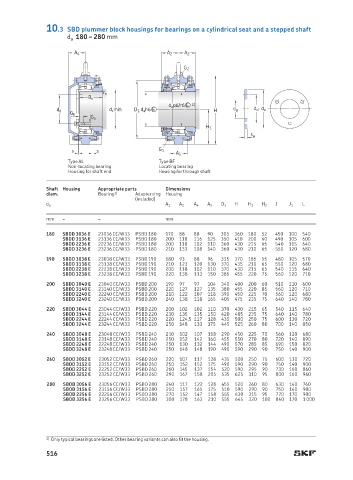

10.3 SBD plummer block housings for bearings on a cylindrical seat and a stepped shaft
d a 180 – 280 mm

A 4 A 2 A 2

G 2

r a
B c
d a p6/r6 E 2)
d c m i n D 1 d a h6 E
d d H d g d d d e
G h
G a
H 1
s a
s s G 1
A 5
Type AL Type BF
Non-locating bearing Locating bearing
Housing for shaft end Housing for through shaft
Shaft Housing Appropriate parts Dimensions
diam. Bearing 1) Adapter ring Housing
(included)
H J L
d a A 1 A 2 A 4 A 5 D 1 H 1 H 2 J 1
mm – – mm
180 SBDD 3036 E 23036 CC/W33 PSBD 180 170 88 88 90 305 360 180 52 450 100 540
SBDD 3136 E 23136 CC/W33 PSBD 180 200 118 116 125 350 410 200 60 490 105 600
SBDD 2236 E 22236 CC/W33 PSBD 180 200 118 102 110 360 430 215 65 540 115 640
SBDD 3236 E 23236 CC/W33 PSBD 180 210 133 108 140 360 430 210 65 550 120 680
190 SBDD 3038 E 23038 CC/W33 PSBD 190 180 93 88 96 315 370 185 55 480 105 570
SBDD 3138 E 23138 CC/W33 PSBD 190 210 123 120 130 370 435 210 65 550 120 680
SBDD 2238 E 22238 CC/W33 PSBD 190 200 118 102 110 370 430 215 65 540 115 640
SBDD 3238 E 23238 CC/W33 PSBD 190 220 138 113 150 385 455 220 75 560 120 710
200 SBDD 3040 E 23040 CC/W33 PSBD 200 190 97 97 104 340 400 200 60 510 110 600
SBDD 3140 E 23140 CC/W33 PSBD 200 220 127 127 135 380 455 220 85 560 120 710
SBDD 2240 E 22240 CC/W33 PSBD 200 210 122 107 118 390 450 225 70 560 120 680
SBDD 3240 E 23240 CC/W33 PSBD 200 240 138 118 165 405 475 235 75 640 140 780
220 SBDD 3044 E 23044 CC/W33 PSBD 220 200 102 102 110 370 430 215 65 540 115 640
SBDD 3144 E 23144 CC/W33 PSBD 220 230 135 135 150 420 485 235 75 640 140 780
SBDD 2244 E 22244 CC/W33 PSBD 220 220 124,5 117 128 435 500 250 75 600 130 720
SBDD 3244 E 23244 CC/W33 PSBD 220 250 148 133 175 445 525 260 80 700 140 850
240 SBDD 3048 E 23048 CC/W33 PSBD 240 210 102 107 118 290 450 225 70 560 120 680
SBDD 3148 E 23148 CC/W33 PSBD 240 250 152 142 160 455 550 270 80 720 140 890
SBDD 2248 E 22248 CC/W33 PSBD 240 250 130 132 144 490 570 285 85 690 150 820
SBDD 3248 E 23248 CC/W33 PSBD 240 250 148 148 190 490 590 290 90 750 140 900
260 SBDD 3052 E 23052 CC/W33 PSBD 260 220 107 117 128 435 500 250 75 600 130 720
SBDD 3152 E 23152 CC/W33 PSBD 260 250 152 152 175 490 590 290 90 750 140 900
SBDD 2252 E 22252 CC/W33 PSBD 260 260 145 137 154 520 590 295 90 730 160 860
SBDD 3252 E 23252 CC/W33 PSBD 260 290 167 158 205 535 625 310 95 800 160 960
280 SBDD 3056 E 23056 CC/W33 PSBD 280 240 117 122 128 455 520 260 80 630 140 760
SBDD 3156 E 23156 CC/W33 PSBD 280 250 157 165 175 510 590 290 90 750 140 900
SBDD 2256 E 22256 CC/W33 PSBD 280 270 152 147 158 555 630 315 95 770 170 900
SBDD 3256 E 23256 CC/W33 PSBD 280 300 178 163 210 555 645 320 100 840 170 1 000

1) Only typical bearings are listed. Other bearing variants can also fit the housing.
