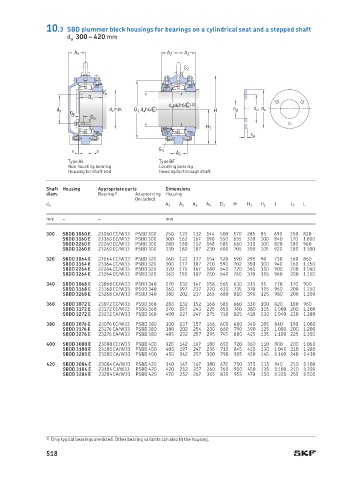

10.3 SBD plummer block housings for bearings on a cylindrical seat and a stepped shaft
d a 300 – 420 mm

A 4 A 2 A 2

G 2

r a
B c
d a p6/r6 E 2)
d c min D 1 d a h6 E
d d H d g d d d e
G h
G a
H 1
s a
s s G 1
A 5
Type AL Type BF
Non-locating bearing Locating bearing
Housing for shaft end Housing for through shaft
Shaft Housing Appropriate parts Dimensions
diam. Bearing 1) Adapter ring Housing
(included)
H J L
d a A 1 A 2 A 4 A 5 D 1 H 1 H 2 J 1
mm – – mm
300 SBDD 3060 E 23060 CC/W33 PSBD 300 250 122 132 144 500 570 285 85 690 150 820
SBDD 3160 E 23160 CC/W33 PSBD 300 300 162 167 190 550 655 320 100 840 170 1 000
SBDD 2260 E 22260 CC/W33 PSBD 300 280 160 152 168 585 660 330 100 820 180 960
SBDD 3260 E 23260 CC/W33 PSBD 300 330 182 187 230 600 705 350 105 920 180 1 100
320 SBDD 3064 E 23064 CC/W33 PSBD 320 260 122 137 154 520 590 295 90 730 160 860
SBDD 3164 E 23164 CC/W33 PSBD 320 300 177 187 210 590 702 350 100 940 160 1 150
SBDD 2264 E 22264 CC/W33 PSBD 320 320 175 167 180 640 720 360 110 900 200 1 060
SBDD 3264 E 23264 CC/W33 PSBD 320 360 192 187 250 640 760 370 115 960 200 1 150
340 SBDD 3068 E 23068 CC/W33 PSBD 340 270 132 147 158 565 630 315 95 770 170 900
SBDD 3168 E 23168 CC/W33 PSBD 340 360 197 237 220 630 735 370 115 960 200 1 150
SBDD 3268 E 23268 CA/W33 PSBD 340 380 202 237 265 680 810 390 125 980 200 1 200
360 SBDD 3072 E 23072 CC/W33 PSBD 360 280 132 152 168 585 660 330 100 820 180 960
SBDD 3172 E 23172 CC/W33 PSBD 360 370 197 243 225 650 760 380 115 1 000 200 1 200
SBDD 3272 E 23272 CA/W33 PSBD 360 400 227 247 275 710 825 410 130 1 040 210 1 280
380 SBDD 3076 E 23076 CC/W33 PSBD 380 300 137 157 168 605 680 340 105 840 190 1 000
SBDD 3176 E 23176 CA/W33 PSBD 380 380 202 254 230 680 790 390 125 1 000 200 1 200
SBDD 3276 E 23276 CA/W33 PSBD 380 405 232 257 295 745 880 425 135 1 100 225 1 350
400 SBDD 3080 E 23080 CC/W33 PSBD 400 320 142 167 180 650 720 360 110 900 200 1 060
SBDD 3180 E 23180 CA/W33 PSBD 400 400 197 247 235 710 845 410 130 1 040 210 1 280
SBDD 3280 E 23280 CA/W33 PSBD 400 450 242 257 300 790 905 450 145 1 160 240 1 430
420 SBDD 3084 E 23084 CA/W33 PSBD 420 340 147 167 180 670 750 375 115 940 210 1 100
SBDD 3184 E 23184 CJ/W33 PSBD 420 420 212 257 260 760 900 450 135 1 100 210 1 350
SBDD 3284 E 23284 CA/W33 PSBD 420 470 252 267 315 835 955 470 150 1 220 255 1 500

1) Only typical bearings are listed. Other bearing variants can also fit the housing.
