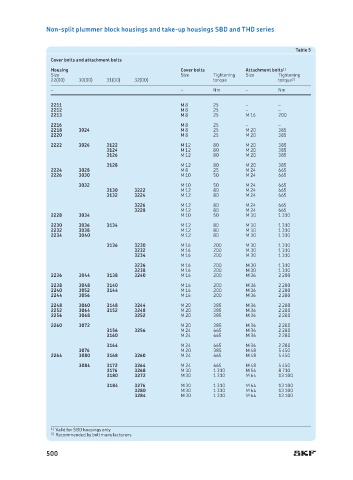

Non-split plummer block housings and take-up housings SBD and THD series

Table 5
Cover bolts and attachment bolts
Housing Cover bolts Attachment bolts 1)
Size Size Tightening Size Tightening
22(00) 30(00) 31(00) 32(00) torque torque 2)
– – Nm – Nm

2211 M 8 25 – –
2212 M 8 25 – –
2213 M 8 25 M 16 200
2216 M 8 25 – –
2218 3024 M 8 25 M 20 385
2220 M 8 25 M 20 385
2222 3026 3122 M 12 80 M 20 385
3124 M 12 80 M 20 385
3126 M 12 80 M 20 385
3128 M 12 80 M 20 385
2224 3028 M 8 25 M 24 665
2226 3030 M 10 50 M 24 665
3032 M 10 50 M 24 665
3130 3222 M 12 80 M 24 665
3132 3224 M 12 80 M 24 665
3226 M 12 80 M 24 665
3228 M 12 80 M 24 665
2228 3034 M 10 50 M 30 1 310
2230 3036 3134 M 12 80 M 30 1 310
2232 3038 M 12 80 M 30 1 310
2234 3040 M 12 80 M 30 1 310
3136 3230 M 16 200 M 30 1 310
3232 M 16 200 M 30 1 310
3234 M 16 200 M 30 1 310
3236 M 16 200 M 30 1 310
3238 M 16 200 M 30 1 310
2236 3044 3138 3240 M 16 200 M 36 2 280
2238 3048 3140 M 16 200 M 36 2 280
2240 3052 3144 M 16 200 M 36 2 280
2244 3056 M 16 200 M 36 2 280
2248 3060 3148 3244 M 20 385 M 36 2 280
2252 3064 3152 3248 M 20 385 M 36 2 280
2256 3068 3252 M 20 385 M 36 2 280
2260 3072 M 20 385 M 36 2 280
3156 3256 M 24 665 M 36 2 280
3160 M 24 665 M 36 2 280
3164 M 24 665 M 36 2 280
3076 M 20 385 M 48 5 450
2264 3080 3168 3260 M 24 665 M 48 5 450
3084 3172 3264 M 24 665 M 48 5 450
3176 3268 M 30 1 310 M 56 8 710
3180 3272 M 30 1 310 M 64 13 100
3184 3276 M 30 1 310 M 64 13 100
3280 M 30 1 310 M 64 13 100
3284 M 30 1 310 M 64 13 100

1) Valid for SBD housings only
2) Recommended by bolt manufacturers
