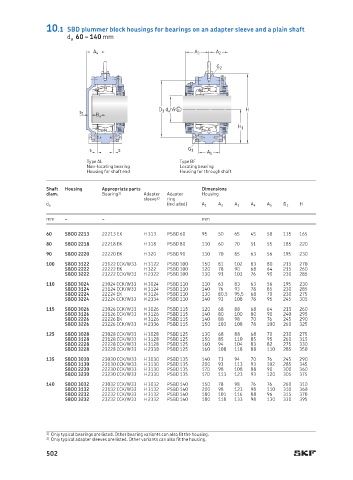

10.1 SBD plummer block housings for bearings on an adapter sleeve and a plain shaft
d a 60 – 140 mm

A 4 A 3 A 2

G 2

D 1 d a h9 E H
s 1
B a
H 1

s s G 1
A 5
Type AL Type BF
Non-locating bearing Locating bearing
Housing for shaft end Housing for through shaft
Shaft Housing Appropriate parts Dimensions
diam. Bearing 1) Adapter Adapter Housing
sleeve 2) ring
(included) H
d a A 1 A 2 A 3 A 4 A 5 D 1
mm – – mm
60 SBDD 2213 22213 EK H 313 PSBD 60 95 50 65 45 58 135 165
80 SBDD 2218 22218 EK H 318 PSBD 80 110 60 70 51 55 185 220
90 SBDD 2220 22220 EK H 320 PSBD 90 110 70 85 63 56 195 230
100 SBDD 3122 23122 CCK/W33 H 3122 PSBD 100 150 81 102 83 80 215 270
SBDD 2222 22222 EK H 322 PSBD 100 120 78 90 68 64 215 260
SBDD 3222 23222 CCK/W33 H 2322 PSBD 100 130 91 103 76 90 230 285
110 SBDD 3024 23024 CCK/W33 H 3024 PSBD 110 110 63 83 63 56 195 230
SBDD 3124 23124 CCK/W33 H 3124 PSBD 110 140 76 93 78 85 230 285
SBDD 2224 22224 EK H 3124 PSBD 110 130 80,5 95,5 68 70 230 275
SBDD 3224 23224 CCK/W33 H 2334 PSBD 110 140 93 108 78 95 245 305
115 SBDD 3026 23026 CCK/W33 H 3026 PSBD 115 120 68 88 68 64 215 260
SBDD 3126 23126 CCK/W33 H 3126 PSBD 115 140 80 100 80 90 240 295
SBDD 2226 22226 EK H 3126 PSBD 115 140 88 98 70 76 245 290
SBDD 3226 23226 CCK/W33 H 2336 PSBD 115 150 103 108 78 100 260 325
125 SBDD 3028 23028 CCK/W33 H 3028 PSBD 125 130 68 88 68 70 230 275
SBDD 3128 23128 CCK/W33 H 3128 PSBD 125 150 85 110 85 95 260 315
SBDD 2228 22228 CCK/W33 H 3128 PSBD 125 160 94 104 83 82 275 330
SBDD 3228 23228 CCK/W33 H 2338 PSBD 125 160 108 118 88 110 285 350
135 SBDD 3030 23030 CCK/W33 H 3030 PSBD 135 140 73 94 70 76 245 290
SBDD 3130 23130 CCK/W33 H 3130 PSBD 135 200 93 113 93 102 285 345
SBDD 2230 22230 CCK/W33 H 3130 PSBD 135 170 98 108 88 90 300 360
SBDD 3230 23230 CCK/W33 H 2330 PSBD 135 170 113 123 93 120 305 375
140 SBDD 3032 23032 CCK/W33 H 3032 PSBD 140 150 78 98 76 76 260 310
SBDD 3132 23132 CCK/W33 H 3132 PSBD 140 200 98 123 98 110 310 368
SBDD 2232 22232 CCK/W33 H 3132 PSBD 140 180 101 116 88 96 315 370
SBDD 3232 23232 CCK/W33 H 2332 PSBD 140 180 118 133 98 130 330 395

1) Only typical bearings are listed. Other bearing variants can also fit the housing.
2) Only typical adapter sleeves are listed. Other variants can also fit the housing.
