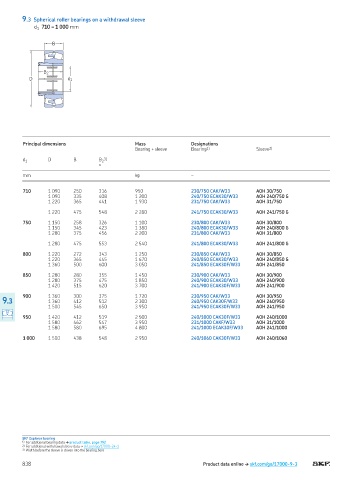

9.3 Spherical roller bearings on a withdrawal sleeve
d 710 – 1 000 mm
1

B

B 2
D d 1

Principal dimensions Mass Designations
Bearing + sleeve Bearing 1) Sleeve 2)
d 1 D B B 3)
2
≈
mm kg –

710 1 090 250 316 950 230/750 CAK/W33 AOH 30/750
1 090 335 408 1 200 240/750 ECAK30/W33 AOH 240/750 G
1 220 365 441 1 930 231/750 CAK/W33 AOH 31/750

1 220 475 548 2 280 241/750 ECAK30/W33 AOH 241/750 G

750 1 150 258 326 1 100 230/800 CAK/W33 AOH 30/800
1 150 345 423 1 380 240/800 ECAK30/W33 AOH 240/800 G
1 280 375 456 2 200 231/800 CAK/W33 AOH 31/800

1 280 475 553 2 540 241/800 ECAK30/W33 AOH 241/800 G

800 1 220 272 343 1 250 230/850 CAK/W33 AOH 30/850
1 220 365 445 1 670 240/850 ECAK30/W33 AOH 240/850 G
1 360 500 600 3 050 241/850 ECAK30F/W33 AOH 241/850

850 1 280 280 355 1 450 230/900 CAK/W33 AOH 30/900
1 280 375 475 1 850 240/900 ECAK30/W33 AOH 240/900
1 420 515 620 3 700 241/900 ECAK30F/W33 AOH 241/900

900 1 360 300 375 1 720 230/950 CAK/W33 AOH 30/950
9.3 1 360 412 512 2 300 240/950 CAK30F/W33 AOH 240/950
1 500 545 650 3 950 241/950 ECAK30F/W33 AOH 241/950

950 1 420 412 519 2 500 240/1000 CAK30F/W33 AOH 240/1000
1 580 462 547 3 950 231/1000 CAKF/W33 AOH 31/1000
1 580 580 695 4 800 241/1000 ECAK30F/W33 AOH 241/1000

1 000 1 500 438 548 2 950 240/1060 CAK30F/W33 AOH 240/1060

SKF Explorer bearing
1) For additional bearing data † product table, page 792
2) For additional withdrawal sleeve data † skf com/go/17000-24-1
3) Width before the sleeve is driven into the bearing bore
838 Product data online † skf.com/go/17000-9-3
