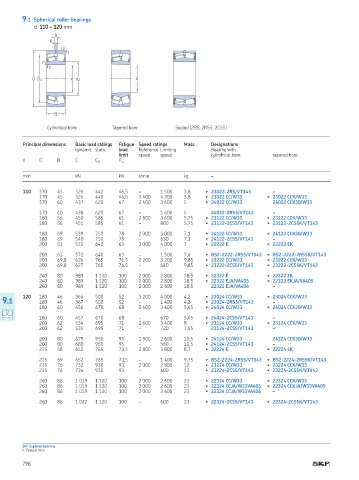

9.1 Spherical roller bearings
d 110 – 120 mm
b
K
r 2
r 1
r 1
r 2
D D 1 d d 2 d

B

Cylindrical bore Tapered bore Sealed (2RS, 2RS5, 2CS5)

Principal dimensions Basic load ratings Fatigue Speed ratings Mass Designations
dynamic static load Reference Limiting Bearing with
limit speed speed cylindrical bore tapered bore
d D B C C 0 P u

mm kN kN r/min kg –

110 170 45 326 440 46,5 – 1 500 3,8 ▶ 23022-2RS/VT143 –
170 45 326 440 46,5 3 400 4 300 3,8 ▶ 23022 CC/W33 ▶ 23022 CCK/W33
170 60 437 620 67 2 400 3 600 5 ▶ 24022 CC/W33 24022 CCK30/W33

170 60 438 620 67 – 1 600 5 24022-2RS5/VT143 –
180 56 450 585 61 2 800 3 600 5,75 ▶ 23122 CC/W33 ▶ 23122 CCK/W33
180 56 451 585 61 – 800 5,75 ▶ 23122-2CS5/VT143 ▶ 23122-2CS5K/VT143

180 69 539 750 78 2 000 3 000 7,1 ▶ 24122 CC/W33 ▶ 24122 CCK30/W33
180 69 540 750 78 – 630 7,1 ▶ 24122-2CS5/VT143 –
200 53 572 640 63 3 000 4 000 7 ▶ 22222 E ▶ 22222 EK

200 63 572 640 63 – 1 500 7,6 ▶ BS2-2222-2RS5/VT143 ▶ BS2-2222-2RS5K/VT143
200 69,8 626 765 76,5 2 200 3 200 9,85 ▶ 23222 CC/W33 ▶ 23222 CCK/W33
200 69,8 627 765 76,5 – 640 9,85 ▶ 23222-2CS5/VT143 ▶ 23222-2CS5K/VT143

240 80 989 1 120 100 2 000 2 800 18,5 ▶ 22322 E ▶ 22322 EK
240 80 989 1 120 100 2 000 2 800 18,5 ▶ 22322 EJA/VA405 ▶ 22322 EKJA/VA405
240 80 989 1 120 100 2 000 2 800 18,5 22322 EJA/VA406 –

120 180 46 366 500 52 3 200 4 000 4,2 ▶ 23024 CC/W33 ▶ 23024 CCK/W33
9.1 180 46 367 500 52 – 1 400 4,2 ▶ 23024-2RS5/VT143 –
180 60 456 670 68 2 400 3 400 5,45 ▶ 24024 CC/W33 ▶ 24024 CCK30/W33

180 60 457 670 68 – 670 5,45 ▶ 24024-2CS5/VT143 –
200 62 534 695 71 2 600 3 400 8 ▶ 23124 CC/W33 ▶ 23124 CCK/W33
200 62 535 695 71 – 720 7,55 23124-2CS5/VT143 –

200 80 679 950 95 1 900 2 600 10,5 ▶ 24124 CC/W33 24124 CCK30/W33
200 80 680 950 95 – 560 10,5 ▶ 24124-2CS5/VT143 –
215 58 652 765 73,5 2 800 3 800 8,7 ▶ 22224 E ▶ 22224 EK

215 69 652 765 73,5 – 1 400 9,75 ▶ BS2-2224-2RS5/VT143 ▶ BS2-2224-2RS5K/VT143
215 76 732 930 93 2 000 2 800 12 ▶ 23224 CC/W33 ▶ 23224 CCK/W33
215 76 734 930 93 – 600 12 ▶ 23224-2CS5/VT143 ▶ 23224-2CS5K/VT143

260 86 1 019 1 120 100 2 000 2 600 23 ▶ 22324 CC/W33 ▶ 22324 CCK/W33
260 86 1 019 1 120 100 2 000 2 600 23 ▶ 22324 CCJA/W33VA405 ▶ 22324 CCKJA/W33VA405
260 86 1 019 1 120 100 2 000 2 600 23 ▶ 22324 CCJA/W33VA406 –

260 86 1 022 1 120 100 – 600 23 ▶ 22324-2CS5/VT143 ▶ 22324-2CS5K/VT143

SKF Explorer bearing
▶ Popular item
