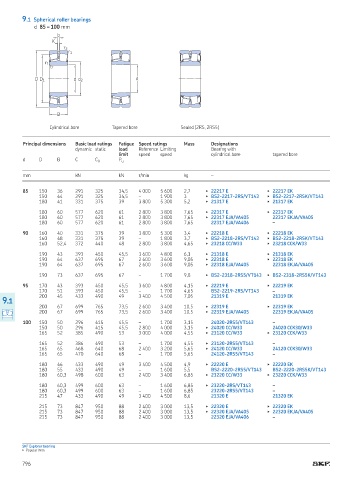

9.1 Spherical roller bearings
d 85 – 100 mm
b
K
r 2
r 1
r 1
r 2
D D 1 d d 2 d

B

Cylindrical bore Tapered bore Sealed (2RS, 2RS5)

Principal dimensions Basic load ratings Fatigue Speed ratings Mass Designations
dynamic static load Reference Limiting Bearing with
limit speed speed cylindrical bore tapered bore
d D B C C 0 P u

mm kN kN r/min kg –

85 150 36 291 325 34,5 4 000 5 600 2,7 ▶ 22217 E ▶ 22217 EK
150 44 291 325 34,5 – 1 900 3 ▶ BS2-2217-2RS/VT143 ▶ BS2-2217-2RSK/VT143
180 41 331 375 39 3 800 5 300 5,2 ▶ 21317 E ▶ 21317 EK

180 60 577 620 61 2 800 3 800 7,65 ▶ 22317 E ▶ 22317 EK
180 60 577 620 61 2 800 3 800 7,65 ▶ 22317 EJA/VA405 22317 EKJA/VA405
180 60 577 620 61 2 800 3 800 7,65 22317 EJA/VA406 –

90 160 40 331 375 39 3 800 5 300 3,4 ▶ 22218 E ▶ 22218 EK
160 48 331 375 39 – 1 800 3,7 ▶ BS2-2218-2RS/VT143 ▶ BS2-2218-2RSK/VT143
160 52,4 372 440 48 2 800 3 800 4,65 ▶ 23218 CC/W33 ▶ 23218 CCK/W33

190 43 393 450 45,5 3 600 4 800 6,1 ▶ 21318 E ▶ 21318 EK
190 64 637 695 67 2 600 3 600 9,05 ▶ 22318 E ▶ 22318 EK
190 64 637 695 67 2 600 3 600 9,05 ▶ 22318 EJA/VA405 22318 EKJA/VA405

190 73 637 695 67 – 1 700 9,8 ▶ BS2-2318-2RS5/VT143 ▶ BS2-2318-2RS5K/VT143

95 170 43 393 450 45,5 3 600 4 800 4,15 ▶ 22219 E ▶ 22219 EK
170 51 393 450 45,5 – 1 700 4,65 BS2-2219-2RS/VT143 –
200 45 433 490 49 3 400 4 500 7,05 21319 E 21319 EK
9.1
200 67 699 765 73,5 2 600 3 400 10,5 ▶ 22319 E ▶ 22319 EK
200 67 699 765 73,5 2 600 3 400 10,5 ▶ 22319 EJA/VA405 22319 EKJA/VA405

100 150 50 296 415 45,5 – 1 700 3,15 24020-2RS5/VT143 –
150 50 296 415 45,5 2 800 4 000 3,15 ▶ 24020 CC/W33 24020 CCK30/W33
165 52 385 490 53 3 000 4 000 4,55 ▶ 23120 CC/W33 ▶ 23120 CCK/W33

165 52 386 490 53 – 1 700 4,55 ▶ 23120-2RS5/VT143 –
165 65 468 640 68 2 400 3 200 5,65 ▶ 24120 CC/W33 24120 CCK30/W33
165 65 470 640 68 – 1 700 5,65 24120-2RS5/VT143 –

180 46 433 490 49 3 400 4 500 4,9 ▶ 22220 E ▶ 22220 EK
180 55 433 490 49 – 1 600 5,5 BS2-2220-2RS5/VT143 BS2-2220-2RS5K/VT143
180 60,3 498 600 63 2 400 3 400 6,85 ▶ 23220 CC/W33 ▶ 23220 CCK/W33

180 60,3 499 600 63 – 1 600 6,85 ▶ 23220-2RS/VT143 –
180 60,3 499 600 63 – 1 600 6,85 23220-2RS5/VT143 –
215 47 433 490 49 3 400 4 500 8,6 21320 E 21320 EK

215 73 847 950 88 2 400 3 000 13,5 ▶ 22320 E ▶ 22320 EK
215 73 847 950 88 2 400 3 000 13,5 ▶ 22320 EJA/VA405 ▶ 22320 EKJA/VA405
215 73 847 950 88 2 400 3 000 13,5 22320 EJA/VA406 –

SKF Explorer bearing
▶ Popular item
