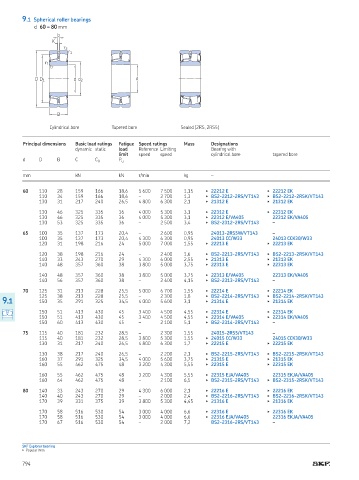

9.1 Spherical roller bearings
d 60 – 80 mm
b
K
r 2
r 1
r 1
r 2
D D 1 d d 2 d

B

Cylindrical bore Tapered bore Sealed (2RS, 2RS5)

Principal dimensions Basic load ratings Fatigue Speed ratings Mass Designations
dynamic static load Reference Limiting Bearing with
limit speed speed cylindrical bore tapered bore
d D B C C 0 P u

mm kN kN r/min kg –

60 110 28 159 166 18,6 5 600 7 500 1,15 ▶ 22212 E ▶ 22212 EK
110 34 159 166 18,6 – 2 700 1,3 ▶ BS2-2212-2RS/VT143 ▶ BS2-2212-2RSK/VT143
130 31 217 240 26,5 4 800 6 300 2,1 ▶ 21312 E ▶ 21312 EK

130 46 325 335 36 4 000 5 300 3,1 ▶ 22312 E ▶ 22312 EK
130 46 325 335 36 4 000 5 300 3,1 ▶ 22312 E/VA405 22312 EK/VA405
130 53 325 335 36 – 2 500 3,4 ▶ BS2-2312-2RS/VT143 –

65 100 35 137 173 20,4 – 2 600 0,95 24013-2RS5W/VT143 –
100 35 137 173 20,4 4 300 6 300 0,95 24013 CC/W33 24013 CCK30/W33
120 31 198 216 24 5 000 7 000 1,55 ▶ 22213 E ▶ 22213 EK

120 38 198 216 24 – 2 400 1,6 ▶ BS2-2213-2RS/VT143 ▶ BS2-2213-2RSK/VT143
140 33 243 270 29 4 300 6 000 2,55 ▶ 21313 E ▶ 21313 EK
140 48 357 360 38 3 800 5 000 3,75 ▶ 22313 E ▶ 22313 EK

140 48 357 360 38 3 800 5 000 3,75 ▶ 22313 E/VA405 22313 EK/VA405
140 56 357 360 38 – 2 400 4,15 ▶ BS2-2313-2RS/VT143 –

70 125 31 213 228 25,5 5 000 6 700 1,55 ▶ 22214 E ▶ 22214 EK
125 38 213 228 25,5 – 2 300 1,8 ▶ BS2-2214-2RS/VT143 ▶ BS2-2214-2RSK/VT143
9.1 150 35 291 325 34,5 4 000 5 600 3,1 ▶ 21314 E ▶ 21314 EK

150 51 413 430 45 3 400 4 500 4,55 ▶ 22314 E ▶ 22314 EK
150 51 413 430 45 3 400 4 500 4,55 ▶ 22314 E/VA405 ▶ 22314 EK/VA405
150 60 413 430 45 – 2 100 5,1 ▶ BS2-2314-2RS/VT143 –

75 115 40 181 232 28,5 – 2 300 1,55 24015-2RS5/VT143 –
115 40 181 232 28,5 3 800 5 300 1,55 ▶ 24015 CC/W33 24015 CCK30/W33
130 31 217 240 26,5 4 800 6 300 1,7 ▶ 22215 E ▶ 22215 EK

130 38 217 240 26,5 – 2 200 2,1 ▶ BS2-2215-2RS/VT143 ▶ BS2-2215-2RSK/VT143
160 37 291 325 34,5 4 000 5 600 3,75 ▶ 21315 E ▶ 21315 EK
160 55 462 475 48 3 200 4 300 5,55 ▶ 22315 E ▶ 22315 EK

160 55 462 475 48 3 200 4 300 5,55 ▶ 22315 EJA/VA405 22315 EKJA/VA405
160 64 462 475 48 – 2 100 6,5 ▶ BS2-2315-2RS/VT143 ▶ BS2-2315-2RSK/VT143

80 140 33 243 270 29 4 300 6 000 2,1 ▶ 22216 E ▶ 22216 EK
140 40 243 270 29 – 2 000 2,4 ▶ BS2-2216-2RS/VT143 ▶ BS2-2216-2RSK/VT143
170 39 331 375 39 3 800 5 300 4,45 ▶ 21316 E ▶ 21316 EK

170 58 516 530 54 3 000 4 000 6,6 ▶ 22316 E ▶ 22316 EK
170 58 516 530 54 3 000 4 000 6,6 ▶ 22316 EJA/VA405 22316 EKJA/VA405
170 67 516 530 54 – 2 000 7,2 BS2-2316-2RS/VT143 –

SKF Explorer bearing
▶ Popular item
