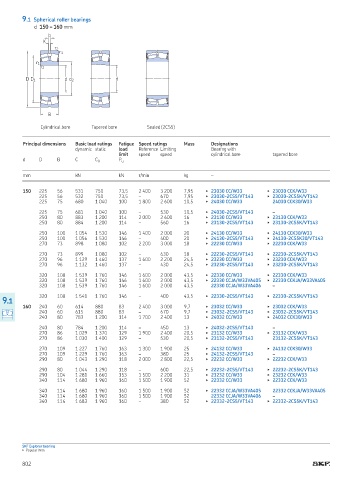

9.1 Spherical roller bearings
d 150 – 160 mm
b
K
r 2
r 1
r 1
r 2
D D 1 d d 2 d

B

Cylindrical bore Tapered bore Sealed (2CS5)

Principal dimensions Basic load ratings Fatigue Speed ratings Mass Designations
dynamic static load Reference Limiting Bearing with
limit speed speed cylindrical bore tapered bore
d D B C C 0 P u

mm kN kN r/min kg –

150 225 56 531 750 73,5 2 400 3 200 7,95 ▶ 23030 CC/W33 ▶ 23030 CCK/W33
225 56 532 750 73,5 – 670 7,95 ▶ 23030-2CS5/VT143 ▶ 23030-2CS5K/VT143
225 75 680 1 040 100 1 800 2 600 10,5 ▶ 24030 CC/W33 24030 CCK30/W33

225 75 681 1 040 100 – 530 10,5 ▶ 24030-2CS5/VT143 –
250 80 883 1 200 114 2 000 2 600 16 ▶ 23130 CC/W33 ▶ 23130 CCK/W33
250 80 884 1 200 114 – 560 16 ▶ 23130-2CS5/VT143 ▶ 23130-2CS5K/VT143

250 100 1 054 1 530 146 1 400 2 000 20 ▶ 24130 CC/W33 ▶ 24130 CCK30/W33
250 100 1 056 1 530 146 – 400 20 ▶ 24130-2CS5/VT143 ▶ 24130-2CS5K30/VT143
270 73 898 1 080 102 2 200 3 000 18 ▶ 22230 CC/W33 ▶ 22230 CCK/W33

270 73 899 1 080 102 – 630 18 ▶ 22230-2CS5/VT143 ▶ 22230-2CS5K/VT143
270 96 1 129 1 460 137 1 600 2 200 24,5 ▶ 23230 CC/W33 ▶ 23230 CCK/W33
270 96 1 132 1 460 137 – 430 24,5 ▶ 23230-2CS5/VT143 ▶ 23230-2CS5K/VT143

320 108 1 539 1 760 146 1 600 2 000 43,5 ▶ 22330 CC/W33 ▶ 22330 CCK/W33
320 108 1 539 1 760 146 1 600 2 000 43,5 ▶ 22330 CCJA/W33VA405 ▶ 22330 CCKJA/W33VA405
320 108 1 539 1 760 146 1 600 2 000 43,5 22330 CCJA/W33VA406 –

320 108 1 541 1 760 146 – 400 43,5 ▶ 22330-2CS5/VT143 ▶ 22330-2CS5K/VT143
9.1
160 240 60 614 880 83 2 400 3 000 9,7 ▶ 23032 CC/W33 ▶ 23032 CCK/W33
240 60 615 880 83 – 670 9,7 ▶ 23032-2CS5/VT143 ▶ 23032-2CS5K/VT143
240 80 783 1 200 114 1 700 2 400 13 ▶ 24032 CC/W33 ▶ 24032 CCK30/W33

240 80 784 1 200 114 – 450 13 ▶ 24032-2CS5/VT143 –
270 86 1 029 1 370 129 1 900 2 400 20,5 ▶ 23132 CC/W33 ▶ 23132 CCK/W33
270 86 1 030 1 400 129 – 530 20,5 ▶ 23132-2CS5/VT143 23132-2CS5K/VT143

270 109 1 227 1 760 163 1 300 1 900 25 ▶ 24132 CC/W33 ▶ 24132 CCK30/W33
270 109 1 229 1 760 163 – 380 25 ▶ 24132-2CS5/VT143 –
290 80 1 043 1 290 118 2 000 2 800 22,5 ▶ 22232 CC/W33 ▶ 22232 CCK/W33

290 80 1 044 1 290 118 – 600 22,5 ▶ 22232-2CS5/VT143 ▶ 22232-2CS5K/VT143
290 104 1 281 1 660 153 1 500 2 200 31 ▶ 23232 CC/W33 ▶ 23232 CCK/W33
340 114 1 680 1 960 160 1 500 1 900 52 ▶ 22332 CC/W33 ▶ 22332 CCK/W33
340 114 1 680 1 960 160 1 500 1 900 52 ▶ 22332 CCJA/W33VA405 22332 CCKJA/W33VA405
340 114 1 680 1 960 160 1 500 1 900 52 22332 CCJA/W33VA406 –
340 114 1 683 1 960 160 – 380 52 ▶ 22332-2CS5/VT143 ▶ 22332-2CS5K/VT143

SKF Explorer bearing
▶ Popular item
