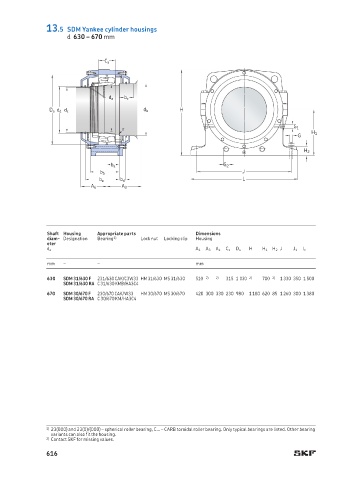

13.5 SDM Yankee cylinder housings
d 630 – 670 mm

C a

d a b c
D a d d d c d b H
r G 1
H 1
G
H 2
b a G 2
J
b b
L
b e b d
A 4 A 3

Shaft Housing Appropriate parts Dimensions
diam- Designation Bearing 1) Lock nut Locking clip Housing
eter
d a A 1 A 3 A 4 C a D a H H 1 H 2 J J 1 L
mm – – mm
630 SDM 31/630 F 231/630 CAK/C3W33 HM 31/630 MS 31/630 510 2) 2) 315 1 030 2) 700 2) 1 330 350 1 500
SDM 31/630 RA C 31/630 KMB/HA3C4
670 SDM 30/670 F 230/670 CAK/W33 HM 30/670 MS 30/670 420 300 330 230 980 1 180 620 85 1 260 300 1 380
SDM 30/670 RA C 30/670 KM/HA3C4

1) 23(000) and 23(0)/(000) – spherical roller bearing, C… – CARB toroidal roller bearing. Only typical bearings are listed. Other bearing
variants can also fit the housing.
2) Contact SKF for missing values.
