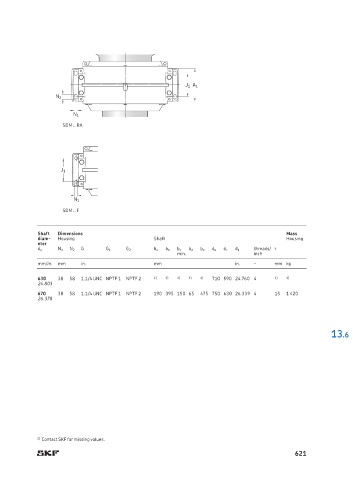

Page 625 - SKF-bearing-housings

J 1 A 1
N 2
N 1
SDM .. RA

J 1

N 1
SDM .. F

Shaft Dimensions Mass
diam- Housing Shaft Housing
eter
d a N 1 N 2 G G 1 G 2 b a b b b c b d b e d b d c d d threads/ r
min. inch
mm/in. mm in. mm in. – mm kg
630 38 58 1.1/4 UNC NPTF 1 NPTF 2 1) 1) 1) 1) 1) 710 590 24.760 4 1) 1)
24.803
670 38 58 1.1/4 UNC NPTF 1 NPTF 2 190 395 150 65 475 750 630 26.339 4 15 1 420
26.378

13.6

1) Contact SKF for missing values.
