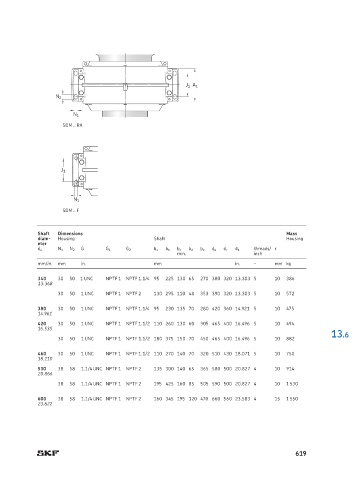

Page 623 - SKF-bearing-housings

J 1 A 1
N 2
N 1
SDM .. RA

J 1

N 1
SDM .. F

Shaft Dimensions Mass
diam- Housing Shaft Housing
eter
d a N 1 N 2 G G 1 G 2 b a b b b c b d b e d b d c d d threads/ r
min. inch
mm/in. mm in. mm in. – mm kg
340 30 50 1 UNC NPTF 1 NPTF 1.1/4 95 225 130 65 270 380 320 13.303 5 10 386
13.368
30 50 1 UNC NPTF 1 NPTF 2 130 295 110 48 353 390 320 13.303 5 10 572
380 30 50 1 UNC NPTF 1 NPTF 1.1/4 95 230 135 70 280 420 360 14.921 5 10 475
14.961
420 30 50 1 UNC NPTF 1 NPTF 1.1/2 110 260 130 60 305 465 400 16.496 5 10 494
16.535
13.6
30 50 1 UNC NPTF 1 NPTF 1.1/2 180 375 150 70 450 465 400 16.496 5 10 882
460 30 50 1 UNC NPTF 1 NPTF 1.1/2 110 270 140 70 320 510 430 18.071 5 10 750
18.110
530 38 58 1.1/4 UNC NPTF 1 NPTF 2 135 300 140 65 365 580 500 20.827 4 10 914
20.866
38 58 1.1/4 UNC NPTF 1 NPTF 2 195 425 160 85 505 590 500 20.827 4 10 1 530
600 38 58 1.1/4 UNC NPTF 1 NPTF 2 160 345 195 120 470 660 560 23.583 4 15 1 550
23.622
