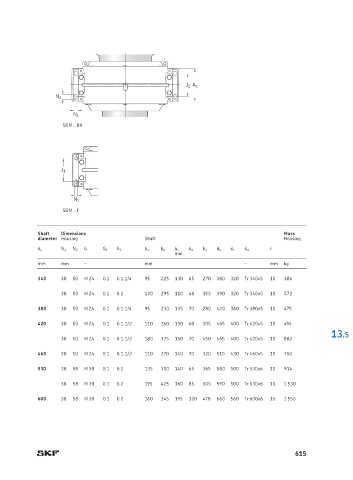

Page 619 - SKF-bearing-housings

J 1 A 1
N 2
N 1
SDM .. RA

J 1

N 1
SDM .. F

Shaft Dimensions Mass
diameter Housing Shaft Housing
d a N 1 N 2 G G 1 G 2 b a b b b c b d b e d b d c d d r
min.
mm mm – mm – mm kg
340 30 50 M 24 G 1 G 1.1/4 95 225 130 65 270 380 320 Tr 340x5 10 386

30 50 M 24 G 1 G 2 130 295 110 48 353 390 320 Tr 340x5 10 572
380 30 50 M 24 G 1 G 1.1/4 95 230 135 70 280 420 360 Tr 380x5 10 475

420 30 50 M 24 G 1 G 1.1/2 110 260 130 60 305 465 400 Tr 420x5 10 494
13.5
30 50 M 24 G 1 G 1.1/2 180 375 150 70 450 465 400 Tr 420x5 10 882

460 30 50 M 24 G 1 G 1.1/2 110 270 140 70 320 510 430 Tr 460x5 10 750
530 38 58 M 30 G 1 G 2 135 300 140 65 365 580 500 Tr 530x6 10 914

38 58 M 30 G 1 G 2 195 425 160 85 505 590 500 Tr 530x6 10 1 530
600 38 58 M 30 G 1 G 2 160 345 195 120 470 660 560 Tr 600x6 15 1 550

615
