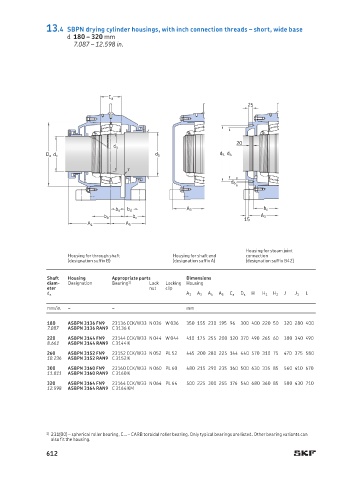

13.4 SBPN drying cylinder housings, with inch connection threads – short, wide base
d 180 – 320 mm
7.087 – 12.598 in.

C a
25

20
d a
D a d c d b d 5 d 4
r
d 6

b a b d A 3 b e
b b b c A 3
15
A 4 A 5

Housing for steam joint
Housing for through shaft Housing for shaft end connection
(designation suffix B) (designation suffix A) (designation suffix B42)

Shaft Housing Appropriate parts Dimensions
diam- Designation Bearing 1) Lock Locking Housing
eter nut clip
H J L
d a A 1 A 3 A 4 A 5 C a D a H 1 H 2 J 1
mm/in. – – mm
180 ASBPN 3136 FN9 23136 CCK/W33 N 036 W 036 350 155 230 195 96 300 400 220 50 320 280 400
7.087 ASBPN 3136 RAN9 C 3136 K
220 ASBPN 3144 FN9 23144 CCK/W33 N 044 W 044 410 175 255 200 120 370 490 265 60 380 340 490
8.661 ASBPN 3144 RAN9 C 3144 K
260 ASBPN 3152 FN9 23152 CCK/W33 N 052 PL 52 445 200 280 225 144 440 570 310 75 470 375 580
10.236 ASBPN 3152 RAN9 C 3152 K
300 ASBPN 3160 FN9 23160 CCK/W33 N 060 PL 60 480 215 290 235 160 500 630 335 85 560 410 670
11.811 ASBPN 3160 RAN9 C 3160 K
320 ASBPN 3164 FN9 23164 CCK/W33 N 064 PL 64 500 225 300 255 176 540 680 360 85 580 430 710
12.598 ASBPN 3164 RAN9 C 3164 KM

1) 231(00) – spherical roller bearing, C… – CARB toroidal roller bearing. Only typical bearings are listed. Other bearing variants can
also fit the housing.
