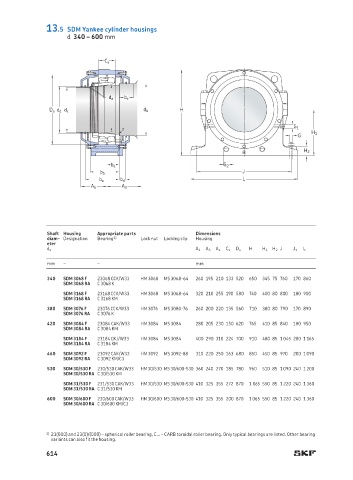

13.5 SDM Yankee cylinder housings
d 340 – 600 mm

C a

d a b c
D a d d d c d b H
r G 1
H 1
G
H 2
b a G 2
J
b b
L
b e b d
A 4 A 3

Shaft Housing Appropriate parts Dimensions
diam- Designation Bearing 1) Lock nut Locking clip Housing
eter
d a A 1 A 3 A 4 C a D a H H 1 H 2 J J 1 L
mm – – mm
340 SDM 3068 F 23068 CCK/W33 HM 3068 MS 3068-64 260 195 210 133 520 650 345 75 760 170 860
SDM 3068 RA C 3068 K
SDM 3168 F 23168 CCK/W33 HM 3068 MS 3068-64 320 210 255 190 580 740 400 80 800 180 900
SDM 3168 RA C 3168 KM
380 SDM 3076 F 23076 CCK/W33 HM 3076 MS 3080-76 260 200 220 135 560 710 380 80 790 170 890
SDM 3076 RA C 3076 K
420 SDM 3084 F 23084 CAK/W33 HM 3084 MS 3084 280 205 230 150 620 765 410 85 840 180 950
SDM 3084 RA C 3084 KM
SDM 3184 F 23184 CKJ/W33 HM 3084 MS 3084 400 290 310 224 700 910 480 85 1 045 280 1 165
SDM 3184 RA C 3184 KM
460 SDM 3092 F 23092 CAK/W33 HM 3092 MS 3092-88 310 220 250 163 680 850 450 85 970 200 1 090
SDM 3092 RA C 3092 KM/C3
530 SDM 30/530 F 230/530 CAK/W33 HM 30/530 MS 30/600-530 360 240 270 185 780 960 510 85 1 090 240 1 200
SDM 30/530 RA C 30/530 KM
SDM 31/530 F 231/530 CAK/W33 HM 30/530 MS 30/600-530 410 325 355 272 870 1 065 550 85 1 220 240 1 360
SDM 31/530 RA C 31/530 KM
600 SDM 30/600 F 230/600 CAK/W33 HM 30/600 MS 30/600-530 410 325 355 200 870 1 065 550 85 1 220 240 1 360
SDM 30/600 RA C 30/600 KM/C3

1) 23(000) and 23(0)/(000) – spherical roller bearing, C… – CARB toroidal roller bearing. Only typical bearings are listed. Other bearing
variants can also fit the housing.
614
