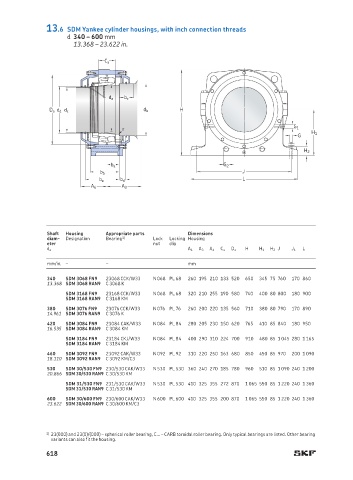

13.6 SDM Yankee cylinder housings, with inch connection threads
d 340 – 600 mm
13.368 – 23.622 in.

C a

d a b c
D a d d d c d b H
r G 1
H 1
G
H 2
b a G 2
J
b b
L
b e b d
A 4 A 3

Shaft Housing Appropriate parts Dimensions
diam- Designation Bearing 1) Lock Locking Housing
eter nut clip
d a A 1 A 3 A 4 C a D a H H 1 H 2 J J 1 L
mm/in. – – mm
340 SDM 3068 FN9 23068 CCK/W33 N 068 PL 68 260 195 210 133 520 650 345 75 760 170 860
13.368 SDM 3068 RAN9 C 3068 K
SDM 3168 FN9 23168 CCK/W33 N 068 PL 68 320 210 255 190 580 740 400 80 800 180 900
SDM 3168 RAN9 C 3168 KM
380 SDM 3076 FN9 23076 CCK/W33 N 076 PL 76 260 200 220 135 560 710 380 80 790 170 890
14.961 SDM 3076 RAN9 C 3076 K
420 SDM 3084 FN9 23084 CAK/W33 N 084 PL 84 280 205 230 150 620 765 410 85 840 180 950
16.535 SDM 3084 RAN9 C 3084 KM
SDM 3184 FN9 23184 CKJ/W33 N 084 PL 84 400 290 310 224 700 910 480 85 1 045 280 1 165
SDM 3184 RAN9 C 3184 KM
460 SDM 3092 FN9 23092 CAK/W33 N 092 PL 92 310 220 250 163 680 850 450 85 970 200 1 090
18.110 SDM 3092 RAN9 C 3092 KM/C3
530 SDM 30/530 FN9 230/530 CAK/W33 N 530 PL 530 360 240 270 185 780 960 510 85 1 090 240 1 200
20.866 SDM 30/530 RAN9 C 30/530 KM
SDM 31/530 FN9 231/530 CAK/W33 N 530 PL 530 410 325 355 272 870 1 065 550 85 1 220 240 1 360
SDM 31/530 RAN9 C 31/530 KM
600 SDM 30/600 FN9 230/600 CAK/W33 N 600 PL 600 410 325 355 200 870 1 065 550 85 1 220 240 1 360
23.622 SDM 30/600 RAN9 C 30/600 KM/C3

1) 23(000) and 23(0)/(000) – spherical roller bearing, C… – CARB toroidal roller bearing. Only typical bearings are listed. Other bearing
variants can also fit the housing.
618
