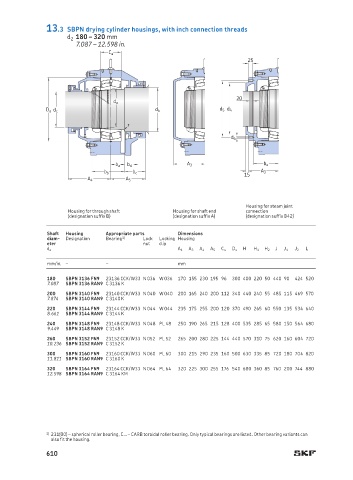

13.3 SBPN drying cylinder housings, with inch connection threads
d 2 180 – 320 mm
7.087 – 12.598 in.
C a
25

20
d a
D a d c d b d 5 d 4
r
d 6

b a b d A 3 b e
b b b c A 3
15
A 4 A 5

Housing for steam joint
Housing for through shaft Housing for shaft end connection
(designation suffix B) (designation suffix A) (designation suffix B42)

Shaft Housing Appropriate parts Dimensions
diam- Designation Bearing 1) Lock Locking Housing
eter nut clip
d a A 1 A 3 A 4 A 5 C a D a H H 1 H 2 J J 1 J 2 L
mm/in. – – mm
180 SBPN 3136 FN9 23136 CCK/W33 N 036 W 036 170 155 230 195 96 300 400 220 50 440 90 424 520
7.087 SBPN 3136 RAN9 C 3136 K
200 SBPN 3140 FN9 23140 CCK/W33 N 040 W 040 200 165 240 200 112 340 440 240 55 485 115 469 570
7.874 SBPN 3140 RAN9 C 3140 K
220 SBPN 3144 FN9 23144 CCK/W33 N 044 W 044 235 175 255 200 120 370 490 265 60 550 135 534 640
8.661 SBPN 3144 RAN9 C 3144 K
240 SBPN 3148 FN9 23148 CCK/W33 N 048 PL 48 250 190 265 215 128 400 535 285 65 580 150 564 680
9.449 SBPN 3148 RAN9 C 3148 K
260 SBPN 3152 FN9 23152 CCK/W33 N 052 PL 52 265 200 280 225 144 440 570 310 75 620 160 604 720
10.236 SBPN 3152 RAN9 C 3152 K
300 SBPN 3160 FN9 23160 CCK/W33 N 060 PL 60 300 215 290 235 160 500 630 335 85 720 180 704 820
11.811 SBPN 3160 RAN9 C 3160 K
320 SBPN 3164 FN9 23164 CCK/W33 N 064 PL 64 320 225 300 255 176 540 680 360 85 760 200 744 880
12.598 SBPN 3164 RAN9 C 3164 KM

1) 231(00) – spherical roller bearing, C… – CARB toroidal roller bearing. Only typical bearings are listed. Other bearing variants can
also fit the housing.
