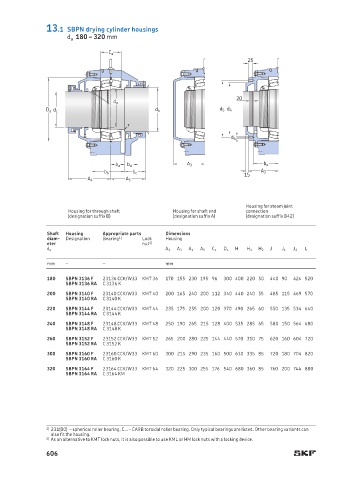

13.1 SBPN drying cylinder housings
d a 180 – 320 mm

C a
25

20
d a
D a d c d b d 5 d 4
r
d 6

b a b d A 3 b e
b b b c A 3
15
A 4 A 5

Housing for steam joint
Housing for through shaft Housing for shaft end connection
(designation suffix B) (designation suffix A) (designation suffix B42)

Shaft Housing Appropriate parts Dimensions
diam- Designation Bearing 1) Lock Housing
eter nut 2)
d a A 1 A 3 A 4 A 5 C a D a H H 1 H 2 J J 1 J 2 L
mm – – mm
180 SBPN 3136 F 23136 CCK/W33 KMT 36 170 155 230 195 96 300 400 220 50 440 90 424 520
SBPN 3136 RA C 3136 K
200 SBPN 3140 F 23140 CCK/W33 KMT 40 200 165 240 200 112 340 440 240 55 485 115 469 570
SBPN 3140 RA C 3140 K
220 SBPN 3144 F 23144 CCK/W33 KMT 44 235 175 255 200 120 370 490 265 60 550 135 534 640
SBPN 3144 RA C 3144 K
240 SBPN 3148 F 23148 CCK/W33 KMT 48 250 190 265 215 128 400 535 285 65 580 150 564 680
SBPN 3148 RA C 3148 K
260 SBPN 3152 F 23152 CCK/W33 KMT 52 265 200 280 225 144 440 570 310 75 620 160 604 720
SBPN 3152 RA C 3152 K
300 SBPN 3160 F 23160 CCK/W33 KMT 60 300 215 290 235 160 500 630 335 85 720 180 704 820
SBPN 3160 RA C 3160 K
320 SBPN 3164 F 23164 CCK/W33 KMT 64 320 225 300 255 176 540 680 360 85 760 200 744 880
SBPN 3164 RA C 3164 KM

1) 231(00) – spherical roller bearing, C… – CARB toroidal roller bearing. Only typical bearings are listed. Other bearing variants can
also fit the housing.
2) As an alternative to KMT lock nuts, it is also possible to use KML or HM lock nuts with a locking device.
